SPECIFICATIONS
Brand Name: NONE
Certification: CE
Conductor Material: Copper
Conductor Type: Solid
High-concerned chemical: None
Origin: Mainland China
Structure: Without modular telephone connectors
Type: Insulated
Use: Not Telecommunication
Voltage: 81-600V（include600V）

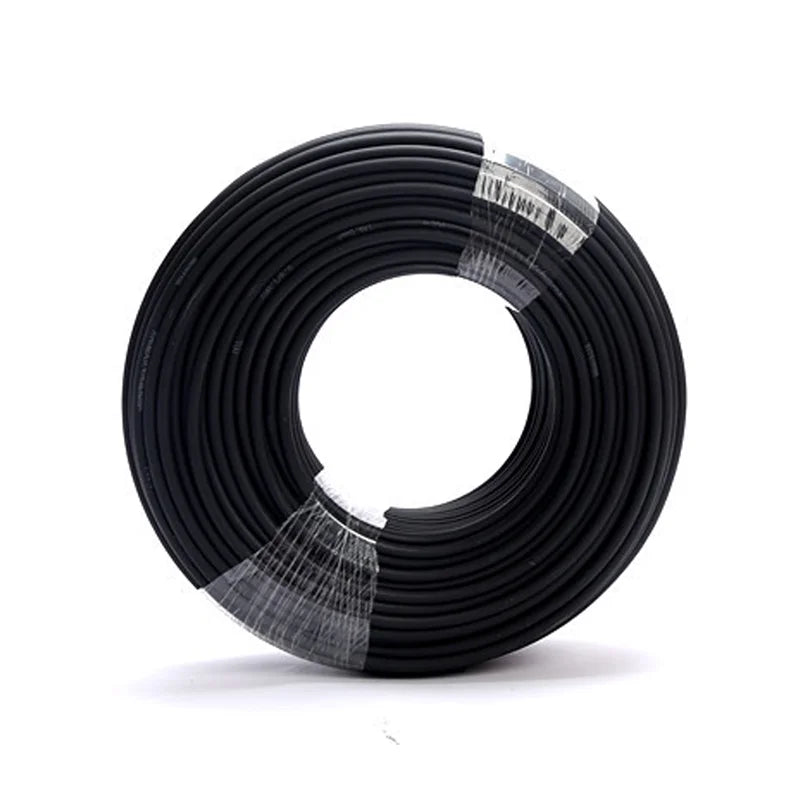

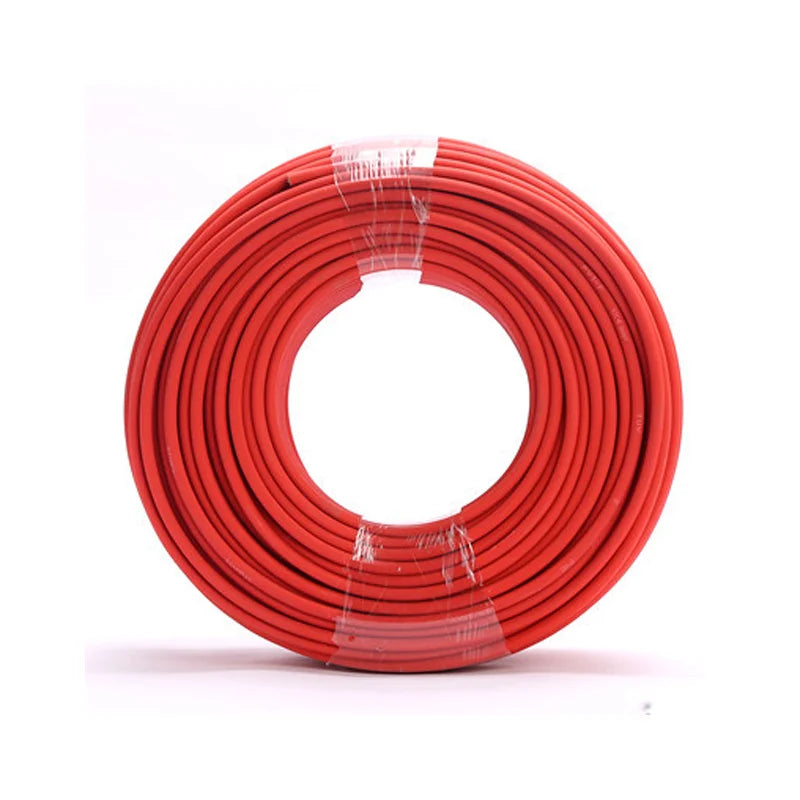

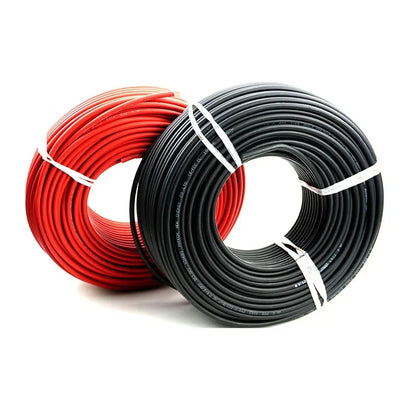

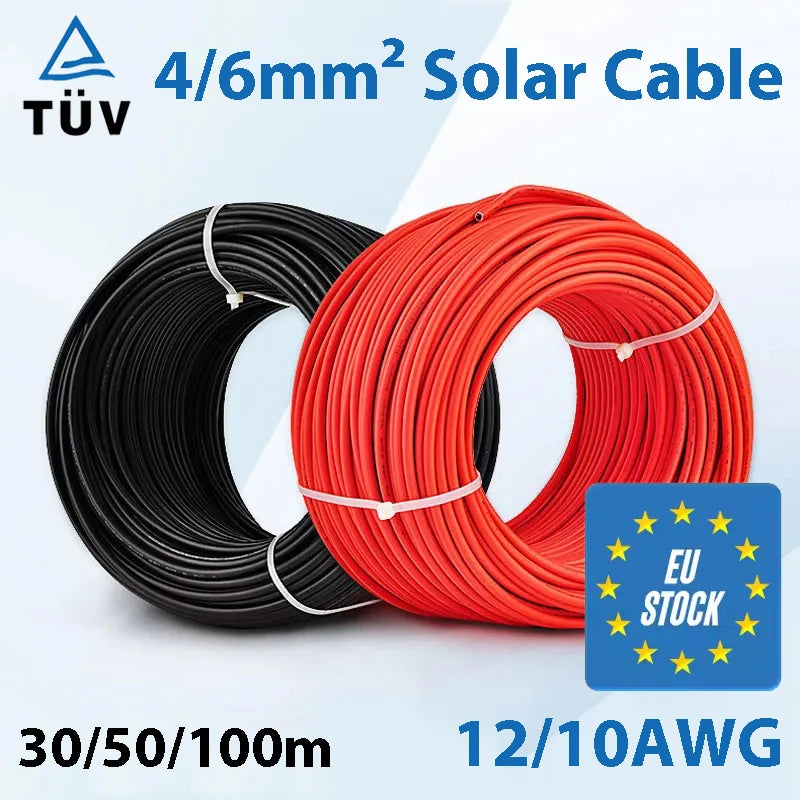

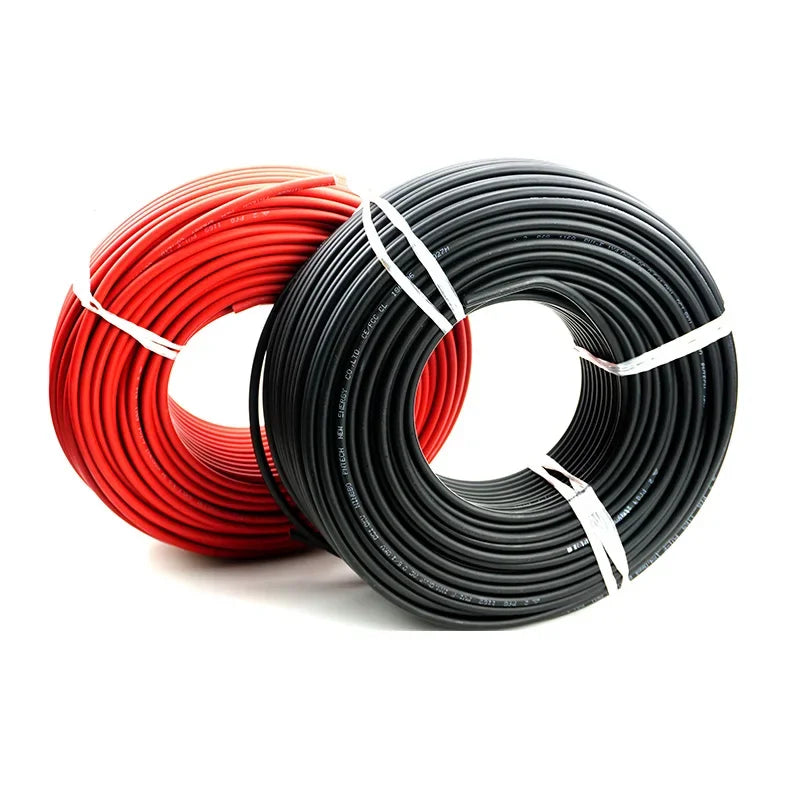

10/30/50/100m High Performance 4/6/10/16mm² Solar PV Cable 12/10/8/6AWG Solar PV Cable Red And Black Color PVC Jacket double layer
Application
Solar Cable used for interconnection wiring of grounded and ungrounded photovolatic power systems.
Cable design

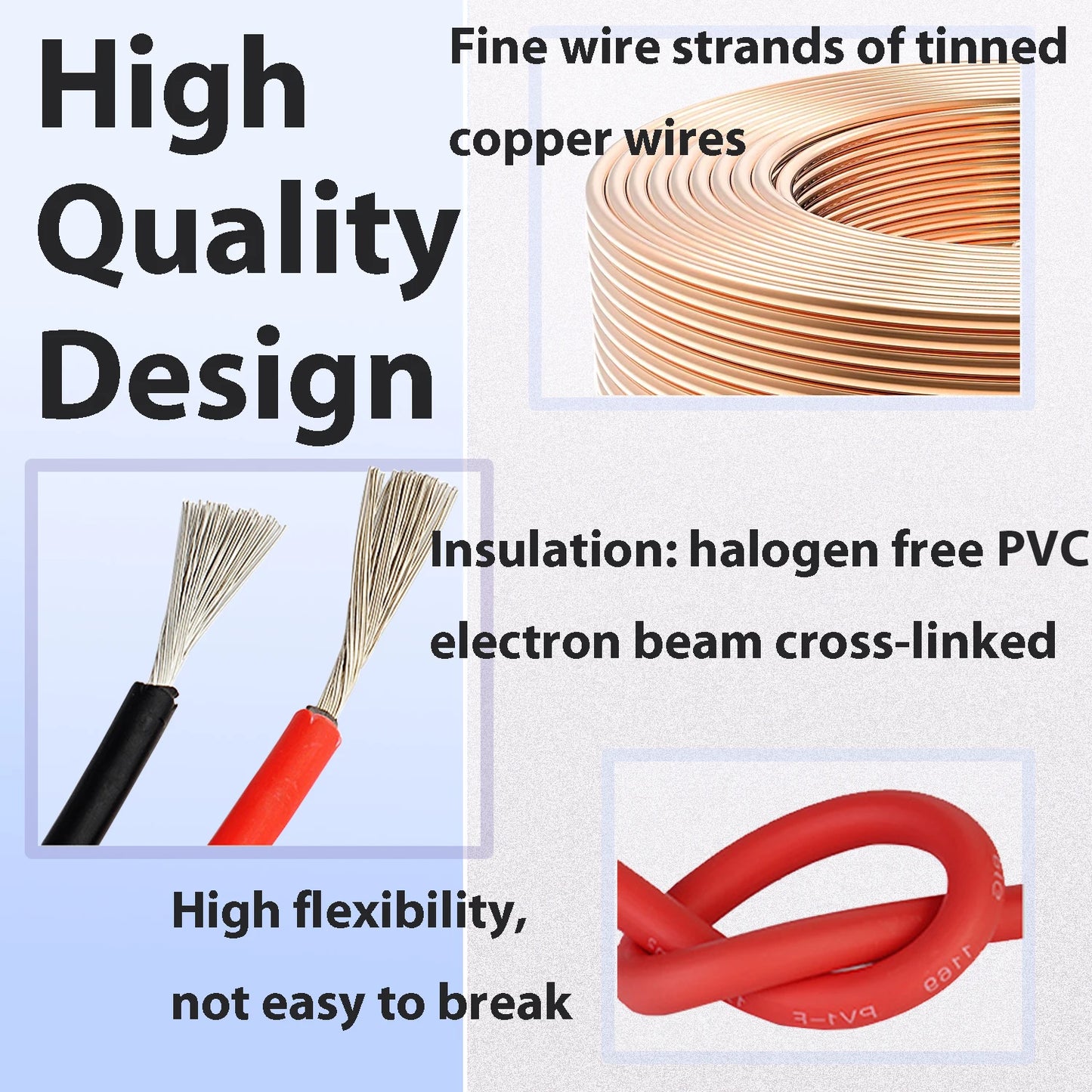

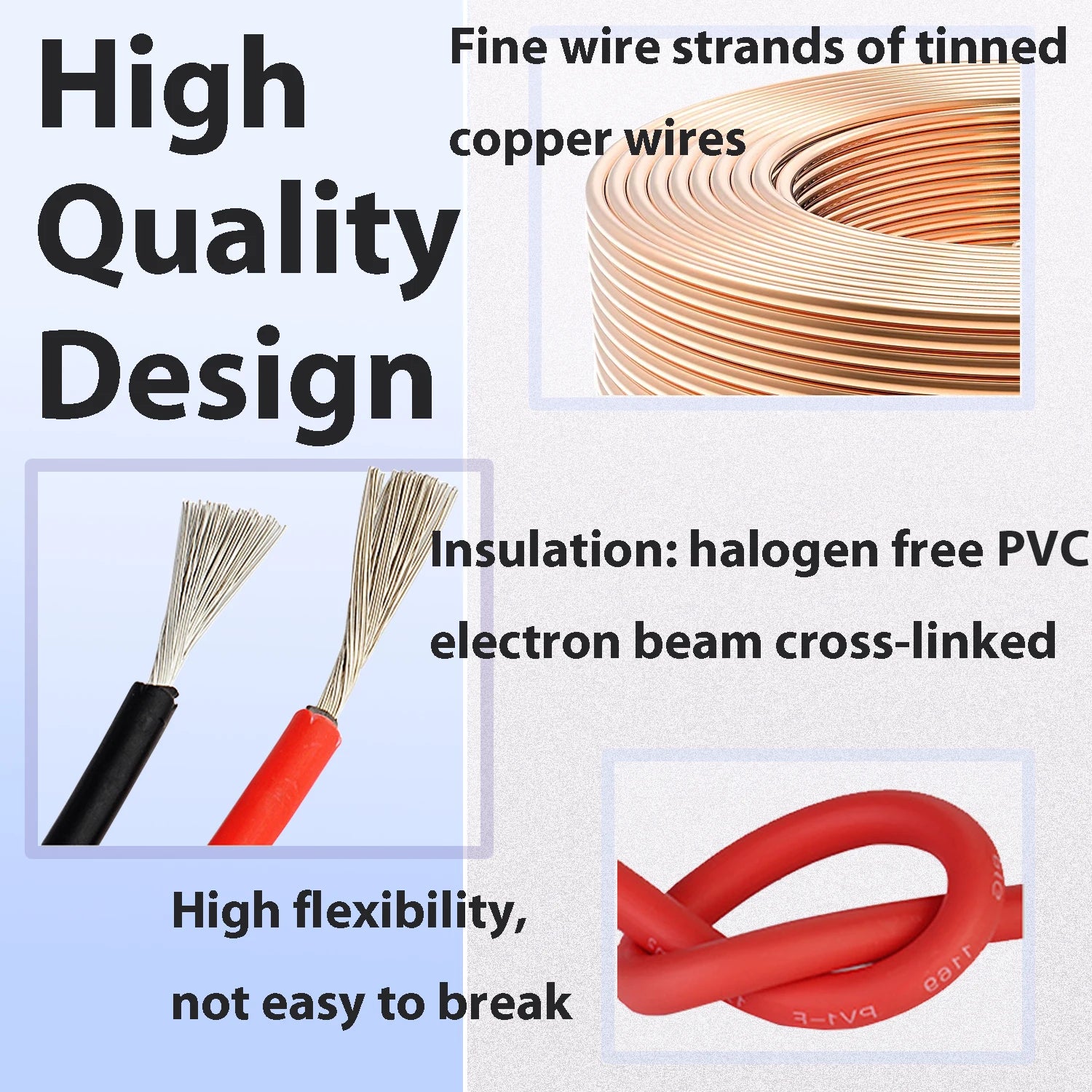

Conductor: fine wire strands of tinned copper wires, acccording IEC 60228, Class 5
Insulation: halogen free PVC, electron beam cross-linked. Color: Black

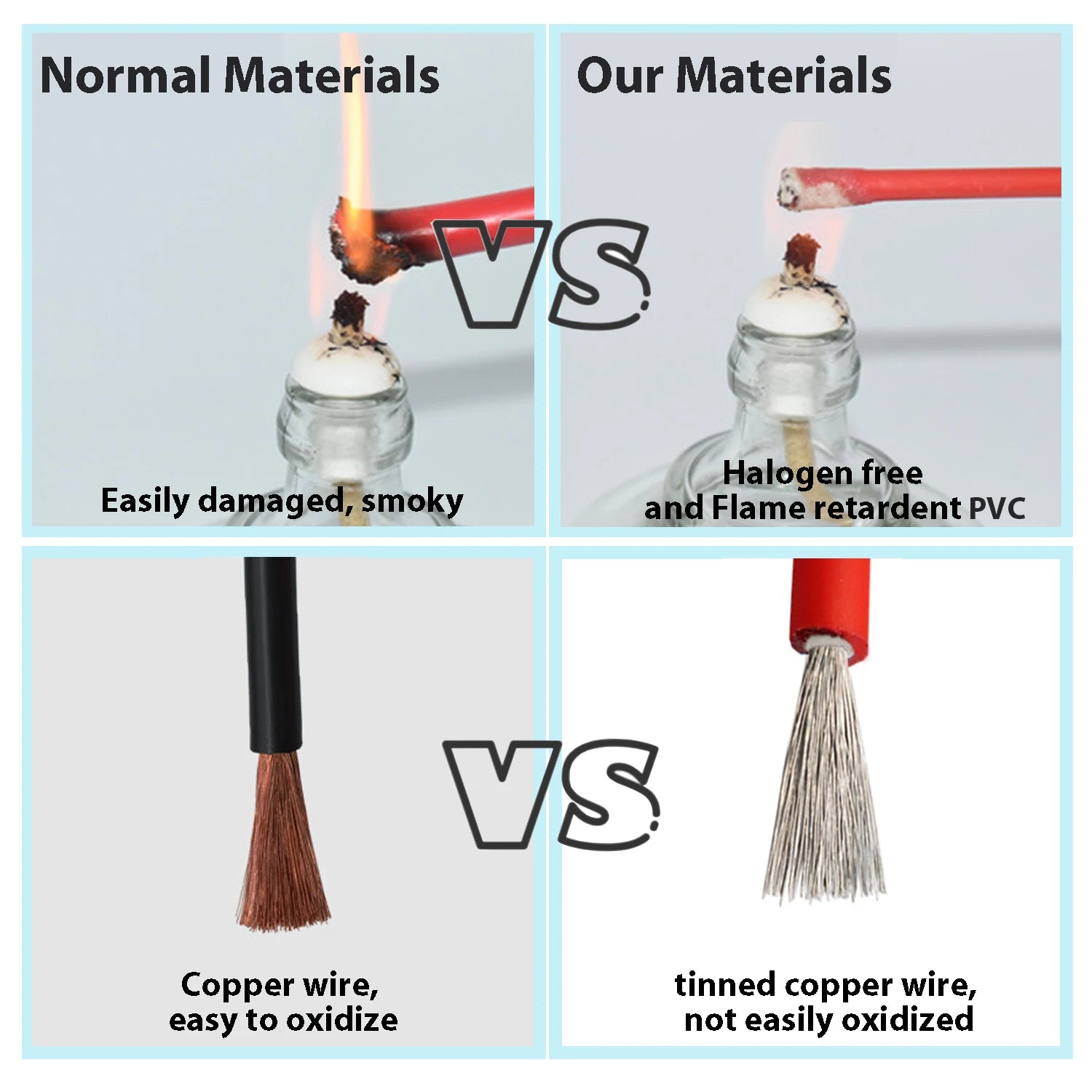

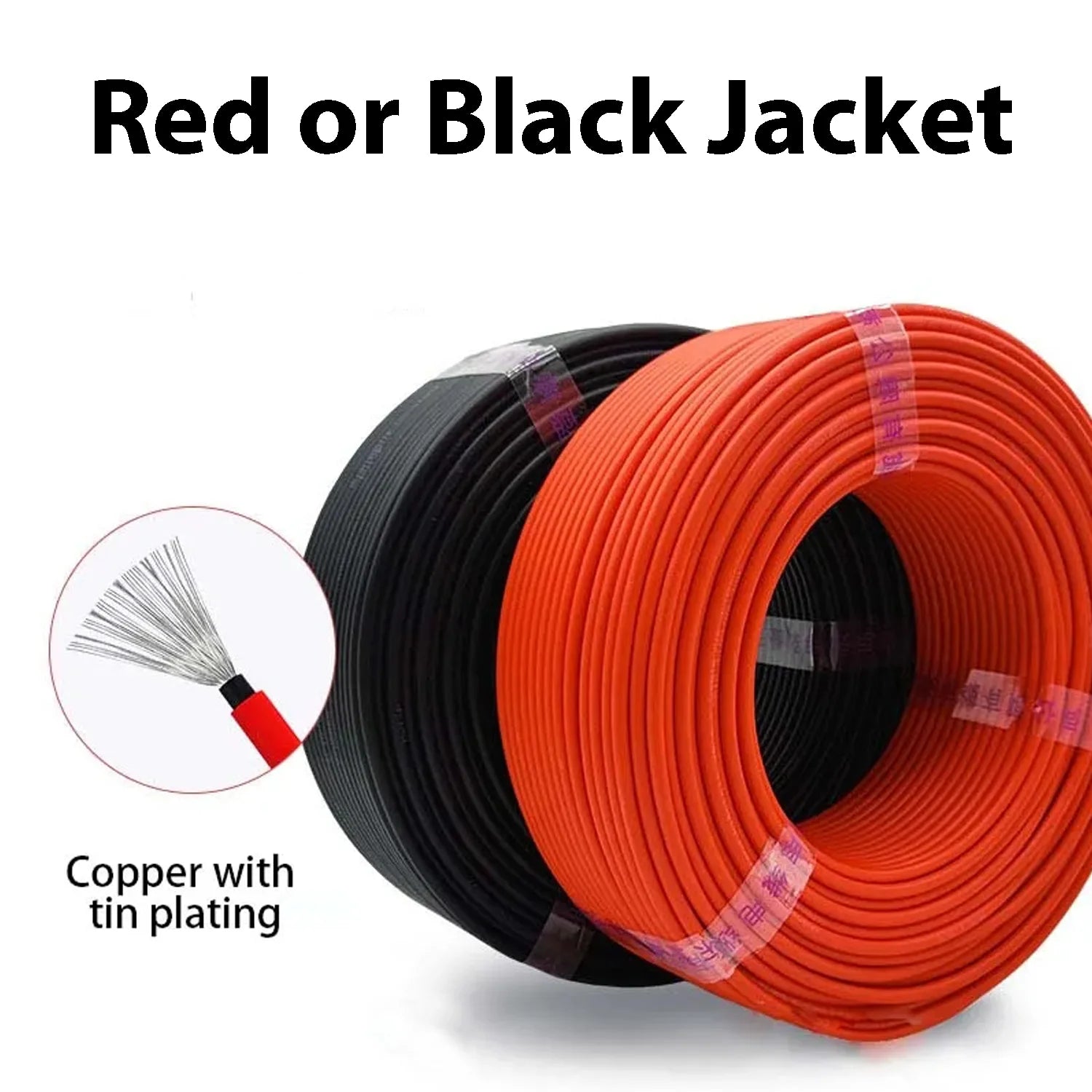

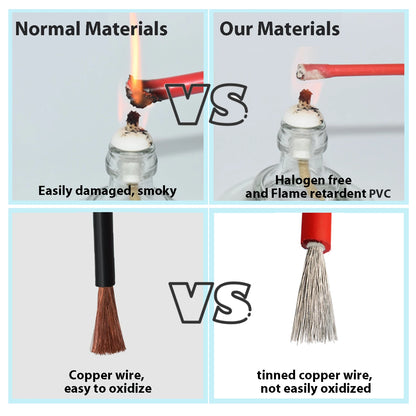

Outer jacket: halogen free and flame retardant PVC, eletron beam cross-linked resistance against water, UV resistant. Jacket Color: Black or Red

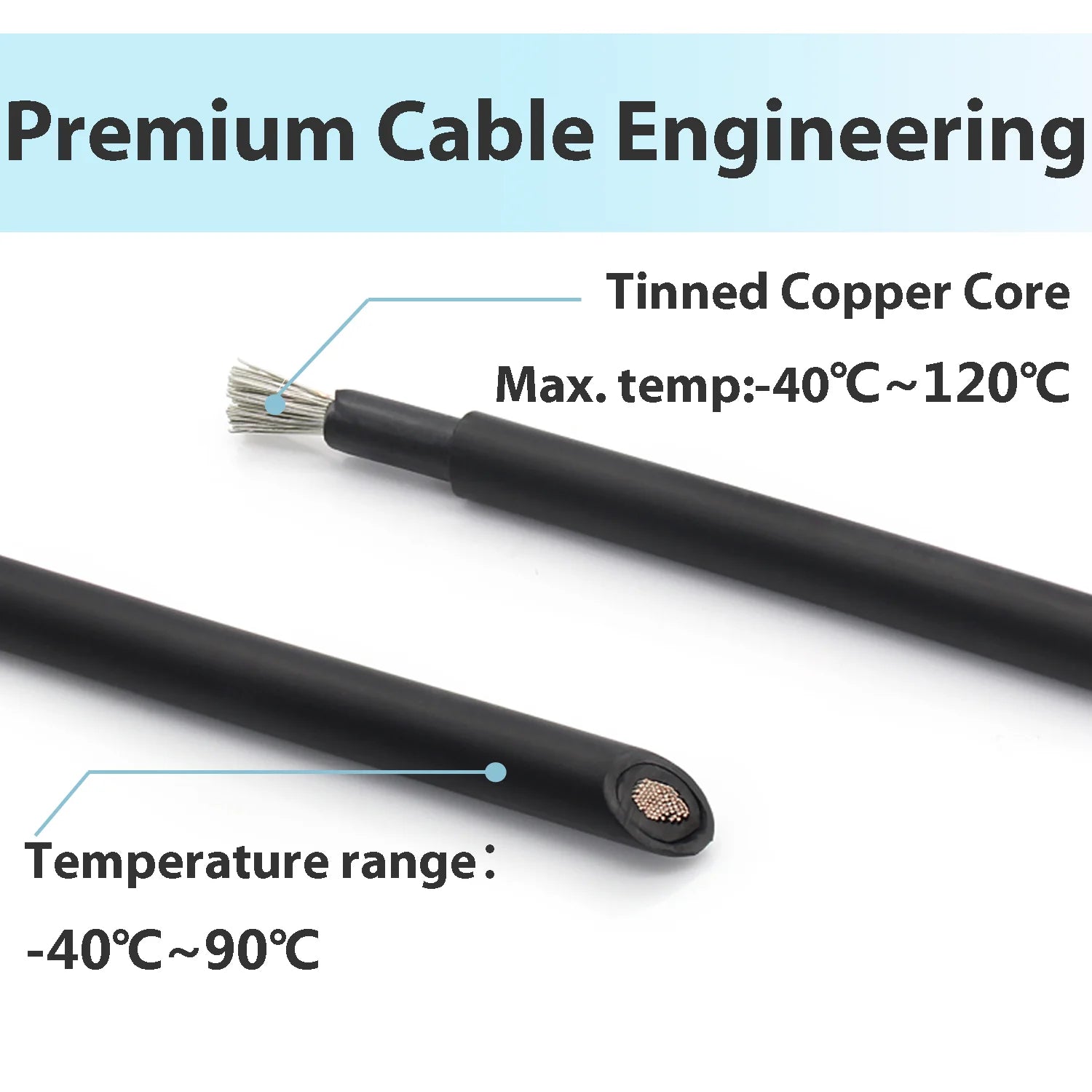

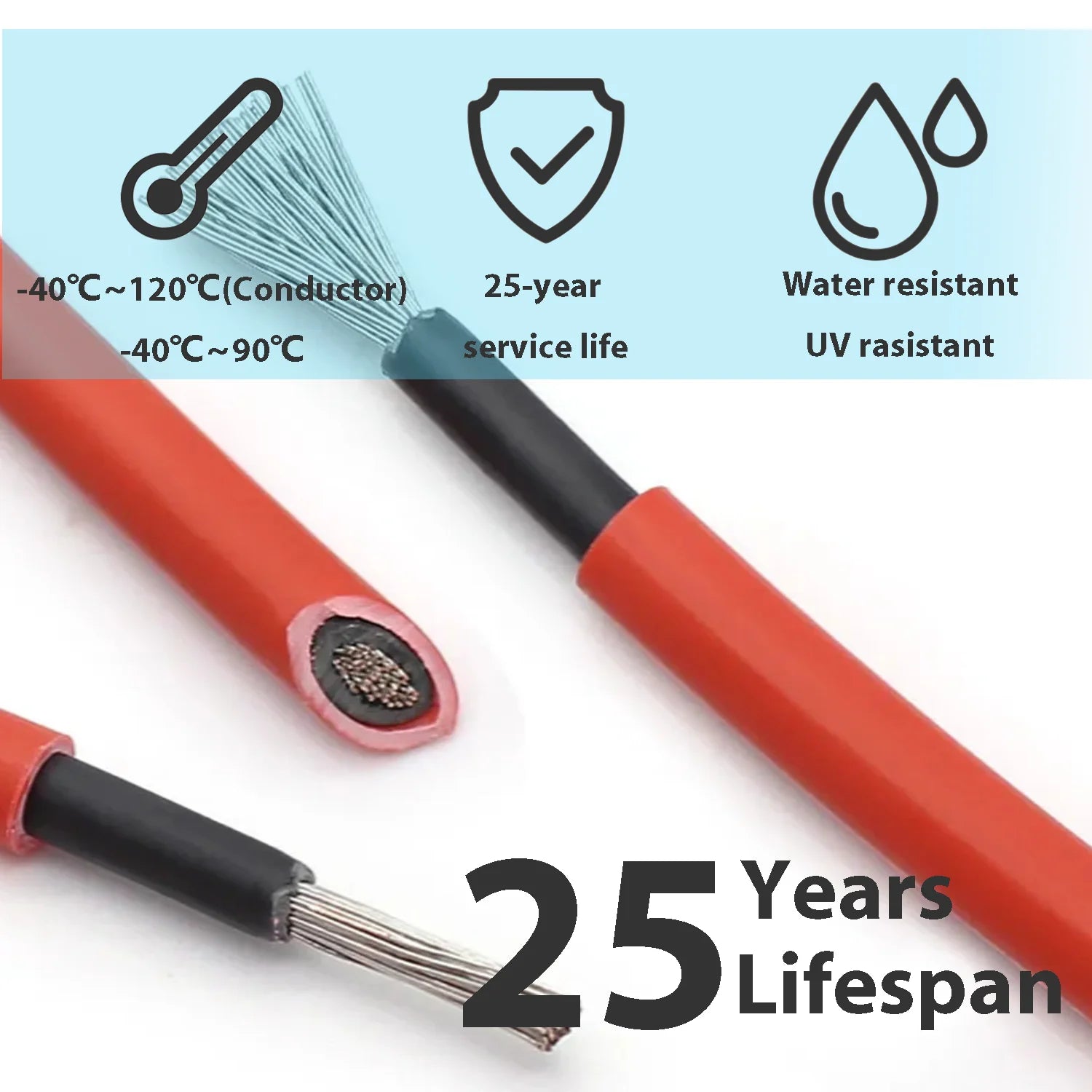

Temperature range
Max. temperature at conductor |
-40℃~120℃ |
Temperature range |
-40℃~90℃ (min. 25 years) |
Electrical characteristics
Nominal voltageU0/U |
AC 600/1000V, DC 900/1500V |
Mat.DC voltage |
1800V (conductor-conductor,non earthed system,circuit not under load) |
AC-test-voltage |
6.5KV |
Min. Surface resistance of sheath |
10^9Ω |
Min.bending radius |
5 x cable diameter |
Other tests |
accorfing EN 50395 |
Mechanical Characteristics
Min.bending radius |
5 x cable diameter |
Tensile strength and elongation |
according EN 60811-1-1 |
Cold Bending |
according EN 60811-1-4 |
Thermal endurance properties |
according EN60216-2 |
Environmental characteristics
Halogen free |
according TUV 2PfG 1169/08.2007 Annex B |
Ozone resistance |
according EN 50396 |
UV resistance |
according HD 605/A1 |
Flame characteristics |
according IEC 60332-1-2 |
Product Description
Size(mm² ) |
Conduct
or dia.
N/mm
|
Insulation
dia.(mm)
|
Core color |
Nominal Jacket dia.(mm) |
Rated Current at 60℃(A) |
Jacket Color |
|
2.5 |
50/0.25 |
3.65 |
Black |
5.25 |
41 |
Black |
|
2.5 |
50/0.25 |
3.65 |
Black |
5.25 |
41 |
Red |
|
4.0 |
56/0.30 |
4.20 |
Black |
6.05 |
55 |
Black |
|
4.0 |
56/0.30 |
4.20 |
Black |
6.05 |
55 |
Red |
|
6.0 |
84/0.30 |
4.90 |
Black |
6.50 |
70 |
Black |
|
6.0 |
84/0.30 |
4.90 |
Black |
6.50 |
70 |
Red |
|
| Color |
black, RED AND BLACK, Red |
|---|---|
| Specification |
12 AWG-4mm2, 10 AWG-6mm2, 8 AWG, 6 AWG |
| Ships From|Length |
france|50m, france|100m, spain|30m, france|30m, spain|100m, spain|50m, Poland|30m, Poland|100m, Poland|50m, United States|50m, United States|100m, United States|30m, france|10m, United States|10m, spain|10m, Poland|10m |
