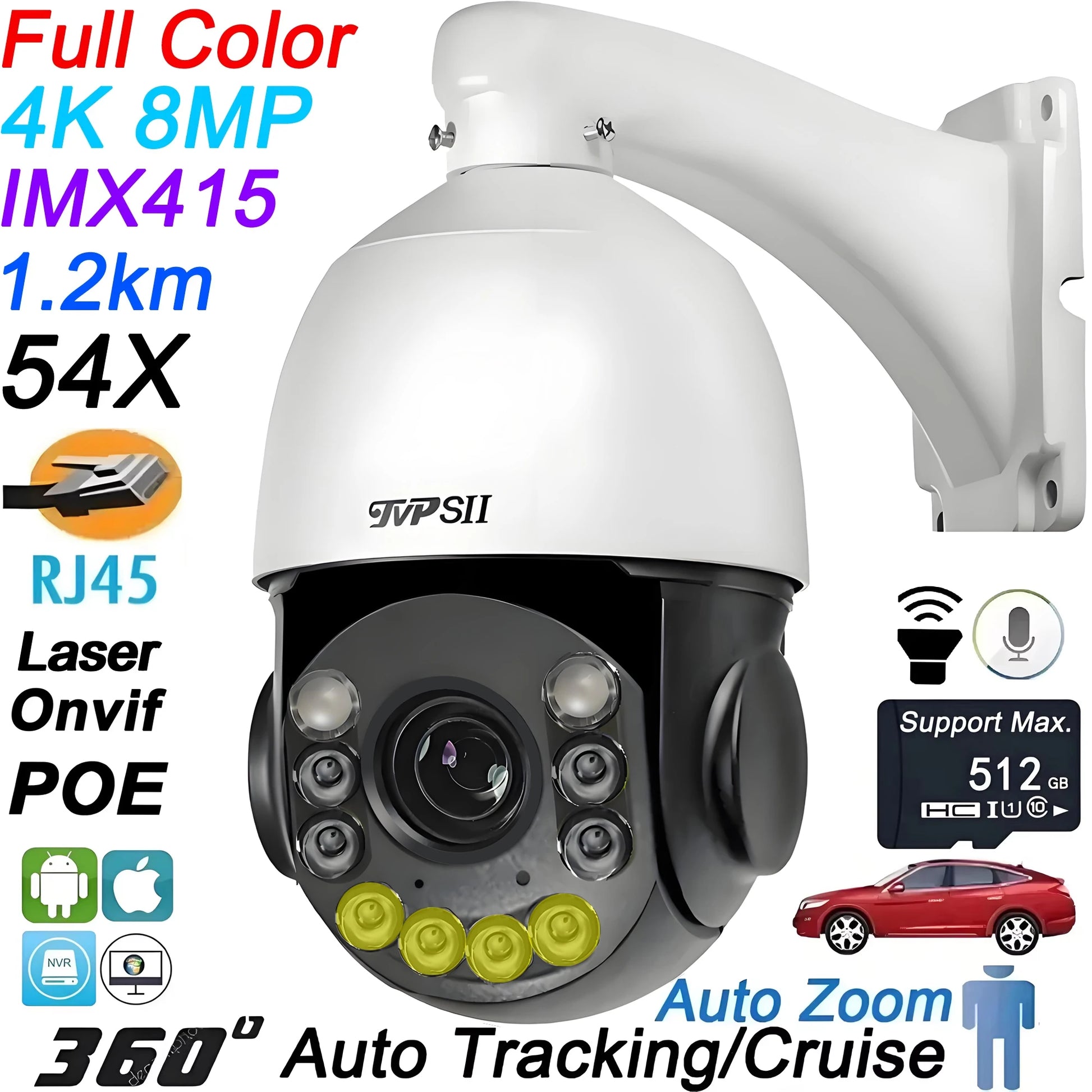

Description: Onvif Metal Laser Infrared Full Color Auto Tracking Cruise 8MP 4K 54X Optics Zoom 360° POE PTZ Speed Dome Surveillance IP Camera
AI Functions: Smart Tracking
APP: Videolink
Alarm Type: telefon Alarm, Local Alarm, FTP Photo, Email Photo
App name: Other

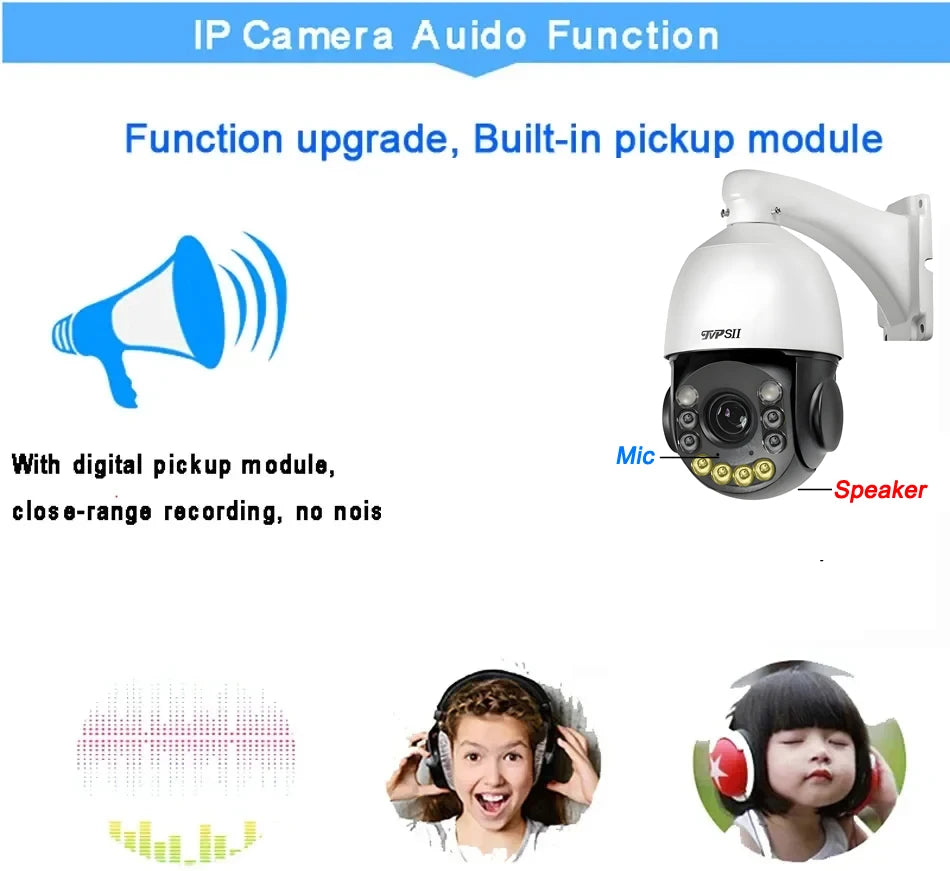

Audio Output: Two Way Audio
Auto Tracking/Cruise: support
Auto Zoom: support
Brand Name: TVPSii
Certification: CE,FCC
Color: WHITE,black
Color Night Vision: Yes
Connectivity: IP/Network Wired
High Definition: 8.0 Megapixels
IP Rating: IP66
IR Distance(m): 150m-200m
Installation: Wall Mounted
Internal Storage: Max.512GB
Led Mode: Smart Daul Led light
Lens (mm): 2mm
Lens Quantity: Single Lens
Minimum Illumination(Lux): 0.001LUX
Model Number: TP-PTZ08B-54XS/TP-PTZ08W-54XS
Movement Range(Pan): Other
Movement Range(Tilt): Other
Operating Temperature: -50°- +60°
Optical Zoom: Other
Pixel: 8MP
Power Consumption(W): 0-30W
Power Mode: Mains Electricity
Power Source: With Poe
Power Supply: With POE
Power Supply(V): 12V
Protocol: onvif/Dahua/Hikvision
Rechargeable Battery: None
Rechargeable Battery Capability: Other

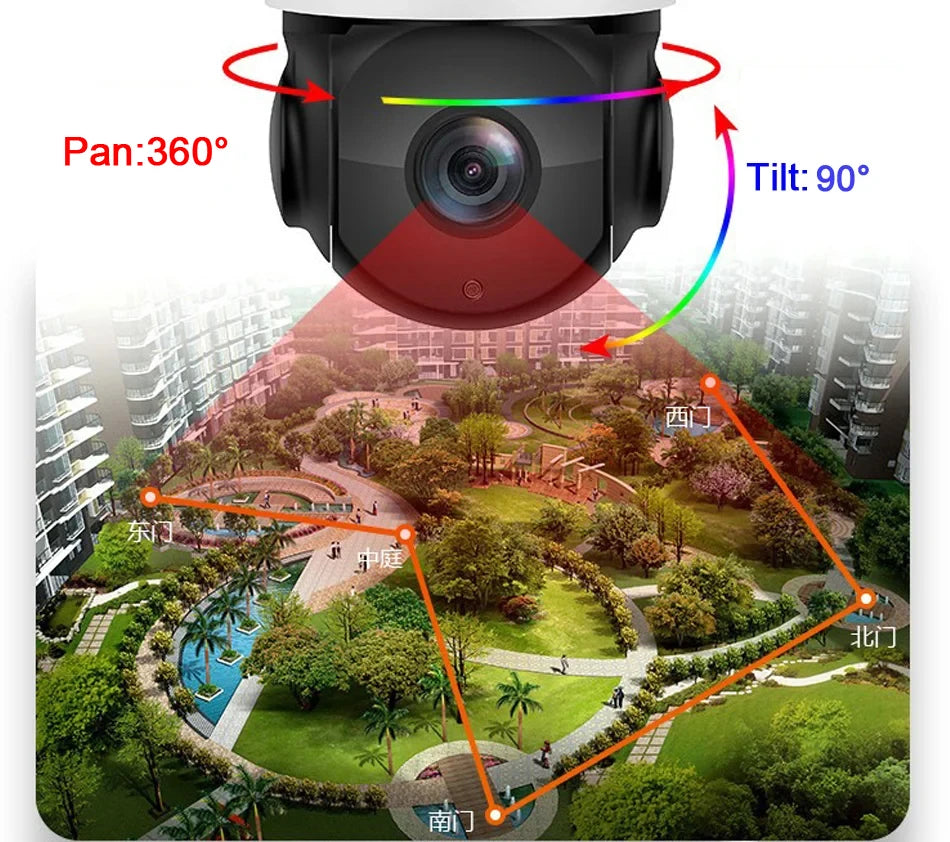

Rotation: Horizontal: 360 degrees, Vertical: 90 degrees
Scene: Indoor and outdoor
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Metal
Smart home platform: Other
Special Features: Waterproof / Weatherproof
Style: Dome Camera
Supported Mobile Systems: iOS,Android
Supported Operating Systems: Windows 10,Windows 8,Windows 7,macOS,Windows XP
TF Card: None
Video Compression Format: H.265
Viewing Angle : 360°
Warranty: 3 years
Waterproof: yes
Zoom: 50x
Zoom type: Optical zoom
Friendly reminder:
All Camera is Double Light Mode,Support Infrared with Warm Led,can set full color and black white night vision.
Compatible With Network Work Video Recorders Such as Dahua NVR;Hikvision NVR;XMeye NVR,TVPSII NVR and other Onvif protocol NVR.

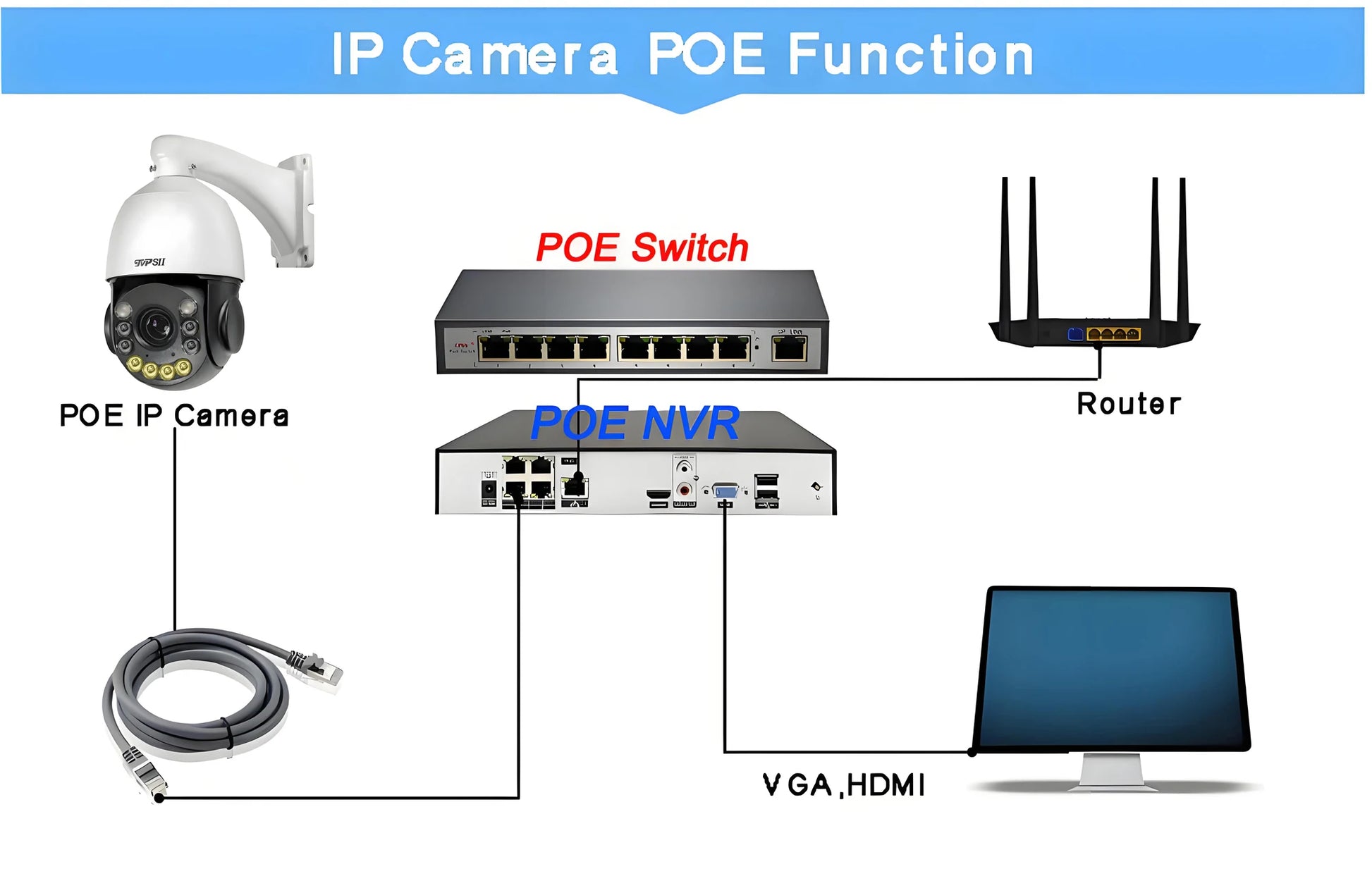

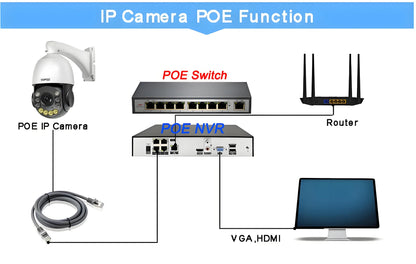

This Camera is POE PTZ Camera ,it can powered by 12V Power adapter,POE Switch,Poe injector or POE NVR.it can be controlled by phone(APP),PC(Web Browser,PC Software) and DVR NVR.
Support automatic tracking,automatic cruise,and SD storage(so can choose buy camera with 128GB, 256GB 512GB SD Card).
Support multiple cruise settings, fixed-point cruise, cruise between two points, cruise between multiple points and 360-degree cruise
Automatic cruise and automatic zoom( Lens auto Zoom in and out) are the basic functions of the PTZ Camera. Many other brands of PTZ Camera do not support them, so Becarful!
Mstar338Q+1/2.8" Sony IMX415:8MP 4K ,3840px*2160px,20fps (support SD Card,Auto Tracking,human and Car Detection)
Support Auto Zoom,Auto Tracking human
Q:What is H.265+ Compression?
A:H.265+ is the newest compression format of surveillance video , it not only runs faster and smoother but also takes up less storage capacity.
Q:There are many ommand statement in PTZ Menu.
A:Support AB preset scan, patrol scan, idle function, focus zoom, timer function, subject of dome camera and so on......
Q:What is POE function for IP Camera?
- 54X:Infrared distance(0-200m)
Resolution |
8MP 4K |
|||
system structure |
Mstar338Q |
|||
CMOS Sensor |
4K 8MP 1/2.8" Sony IMX415 |
|||
Min illumination |
Low illumination 0.001Lux |
|||
Video processing |
H.265AI / H.265 + (compatible with H.265 / H.264) encoding, dual stream, AVI format |
|||
Image output |
8MP 4K 3840*2160@20fps |
|||
Shutter |
1/50 (1/60) seconds to 1/10000 seconds |
|||

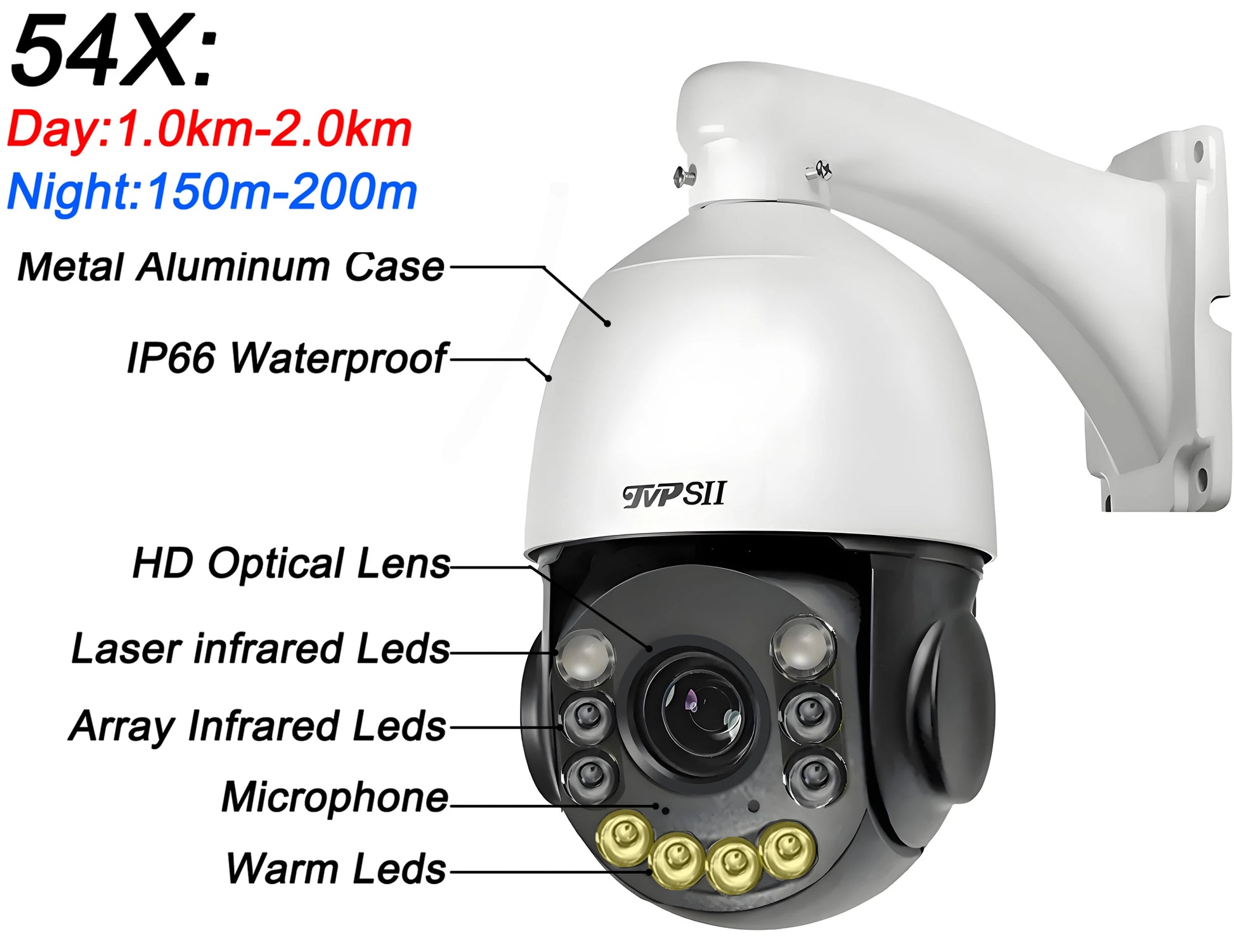

Infrared Led Light |
2pcs Laser Led+4pcs infrared Led+4pcs Warm Led |
|||
IR Distance |
150m-200m |
|||
Conversion mode |
Day and night conversion mode |
|||
Noise reduction |
Support 2D/3D noise reduction |
|||
Wide dynamic |
digital wide dynamics |
|||
Network Interface |
1*RJ45 network interface, 10/100M adaptive |
|||
Reliability |
Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours -50 ℃ ～ 65 ℃ test is stable and reliable |
|||
Cruise settings |
Support(Fixed-point cruise, cruise between two points,360° cruise,......) |
|||
Human auto tracking |
Support |
|||
SD Card |
Support(Max:512G) |
|||
POE Function |
Support |
|||
Network protocol |
TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
|||
Presets |
255 |
|||
Optical focus |
54X |
|||
Protocol |
Hikvision,Dahua,Onvif |
|||
Rotation |
90 degrees vertical,360 degrees horizontal |
|||
Water resistance |
IP66 |
|||
Work Temperature |
-50°C ~ +60°C |
|||
Weight |
1.90kg |
|||
Phone monitoring |
Videolink |
|||
Power Supply |
Power by POE |
|||
Friendly Reminder:
the default ip address is 192.168.1.XXX please use PC Software or NVR find ip address.
if choose buy poe ip camera, this camera support 12V DC and 48V POE
we only spent two days (48 hours) for sent parcel , have tracking number and tracking number information.
if you choose DHL for sent goods, please make sure that your address is not in remote areas for DHL,because it will produce huge transportation costs for remote areas, this also need pay by buyer.
NOTICE:
if you have any question about this Goods and Logistics,Contact us in the above manner,we will try our best to help you,if you input dispute or give negative feedback without responsible ,we not welcome unfriendly client,Thanks!
| Sensor Size |
54X 8mp 4K Sony415 |
|---|---|
| Horizontal Resolution |
Black, White |
| Plug Type|Ships From |
POE48V|france, POE48V|japan, POE48V|United States |
