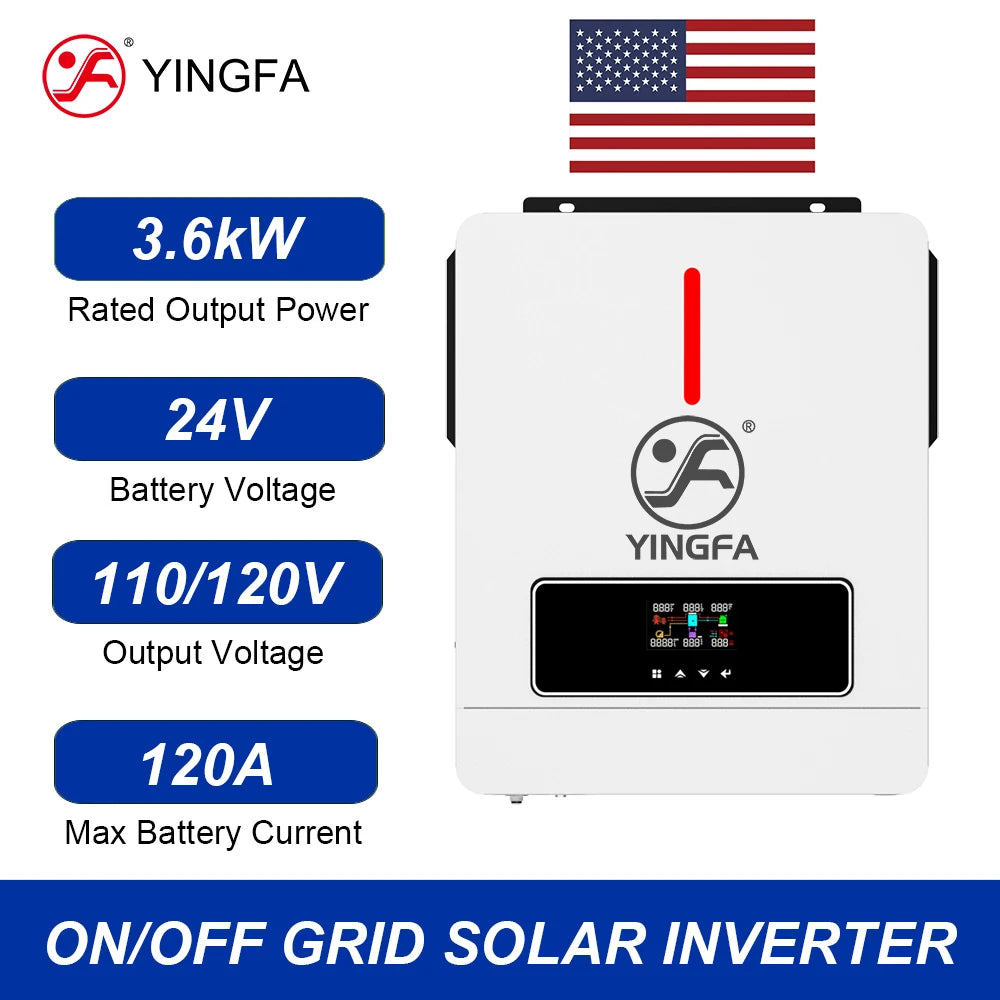

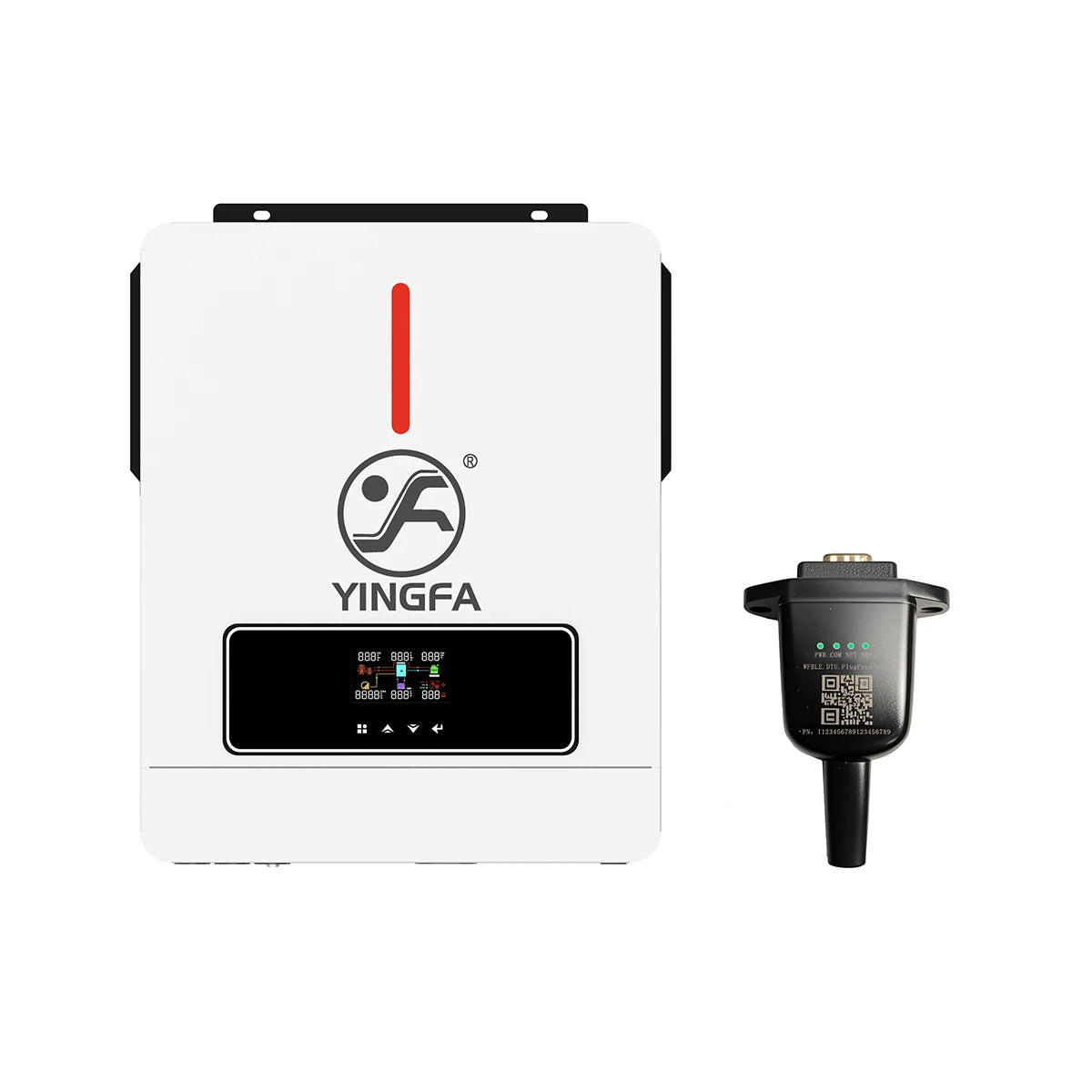

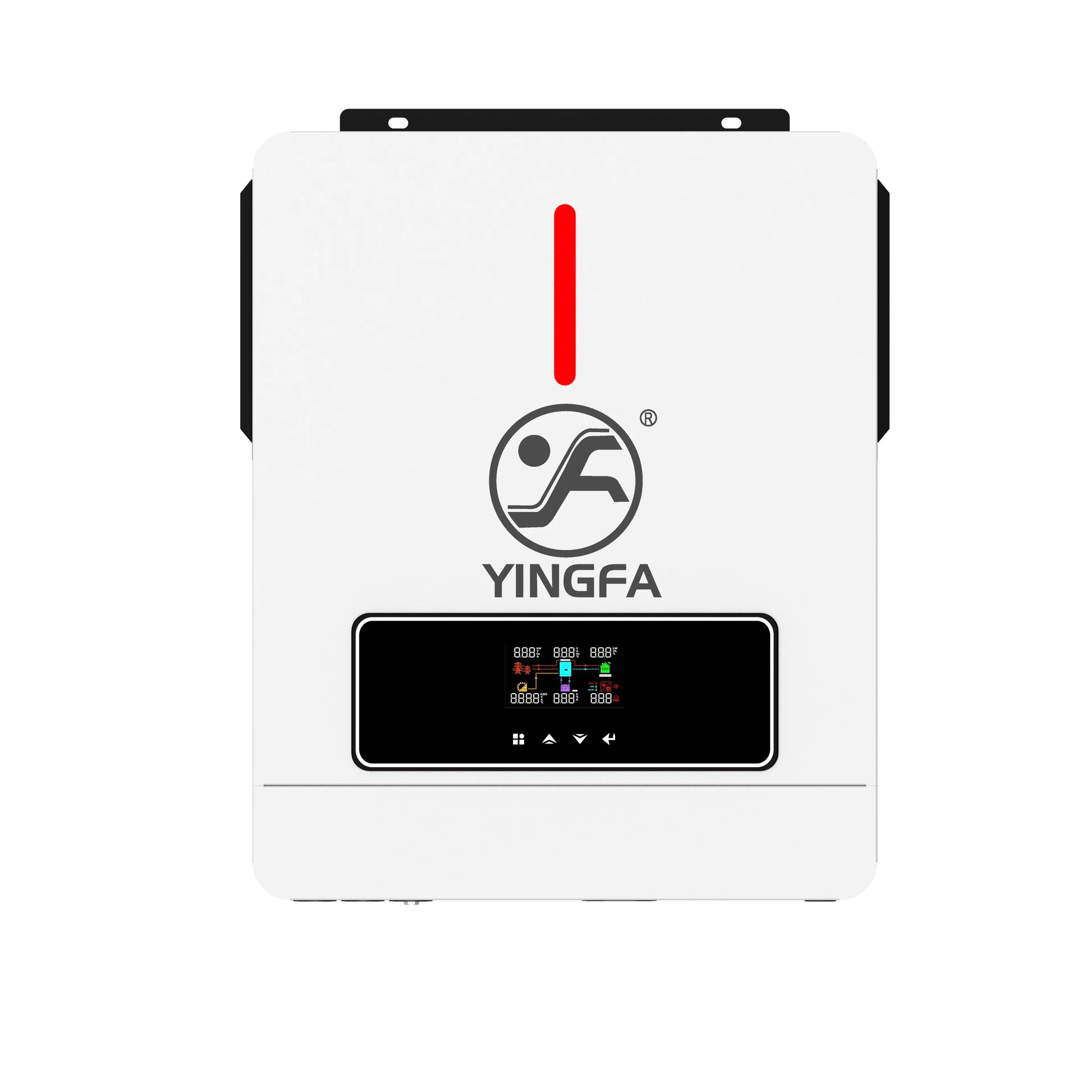

Description: Local Warehouse Items MPPT Solar Power Inverters Hybrid Pure Sine Wave Inverter 3.6kW 24V 110V Inversor Off Grid Solar System
Brand Name: YINGFA RISEN
Is Smart Device: Yes
Model Number: 3.6KW
Origin: US(Origin)
Output Frequency: 50+1Hz/60+1HZ
Output Type: SINGLE
Weight: 10KG
Note
US has inventories. Fast Delivery.
Battery Information
If your battery needs BMS, please make sure it support PLYON or PACE protocol.
If your battery does not require BMS communication, then it is also workable.
Quality
Same as other suppliers.
Key Function

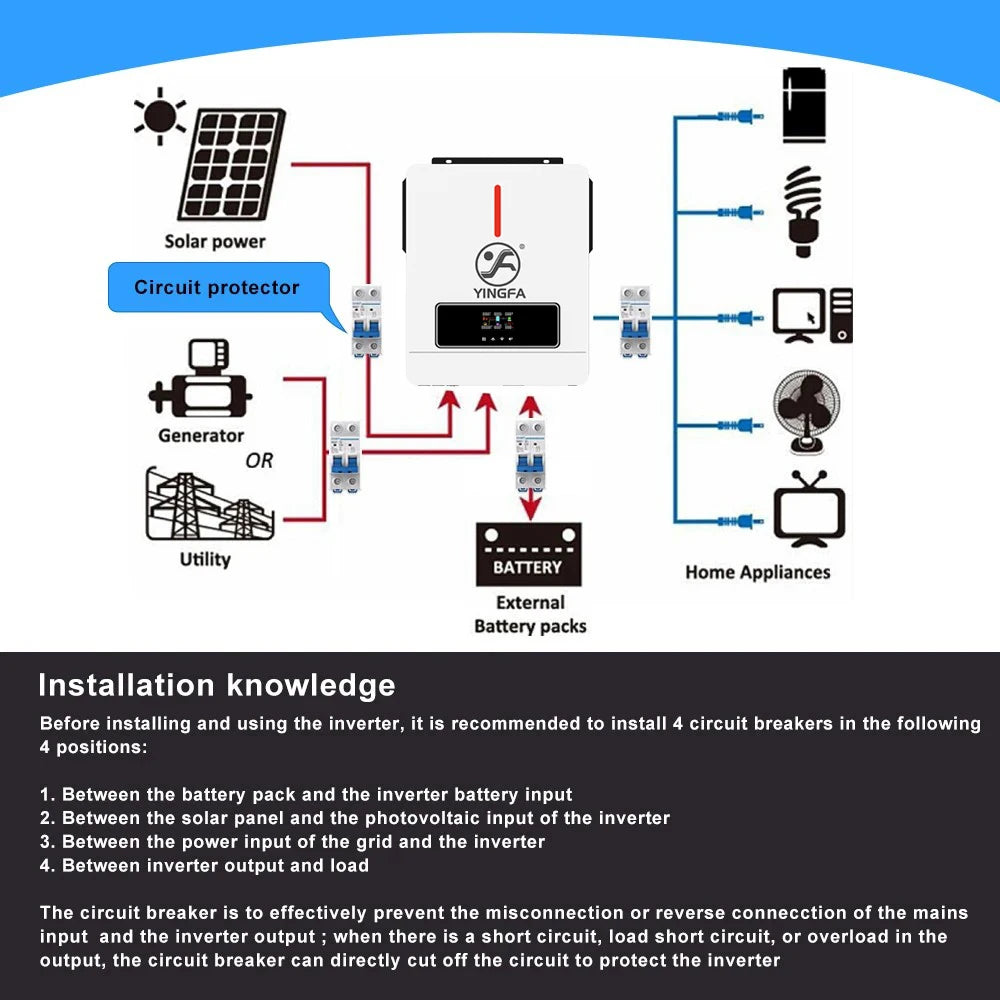

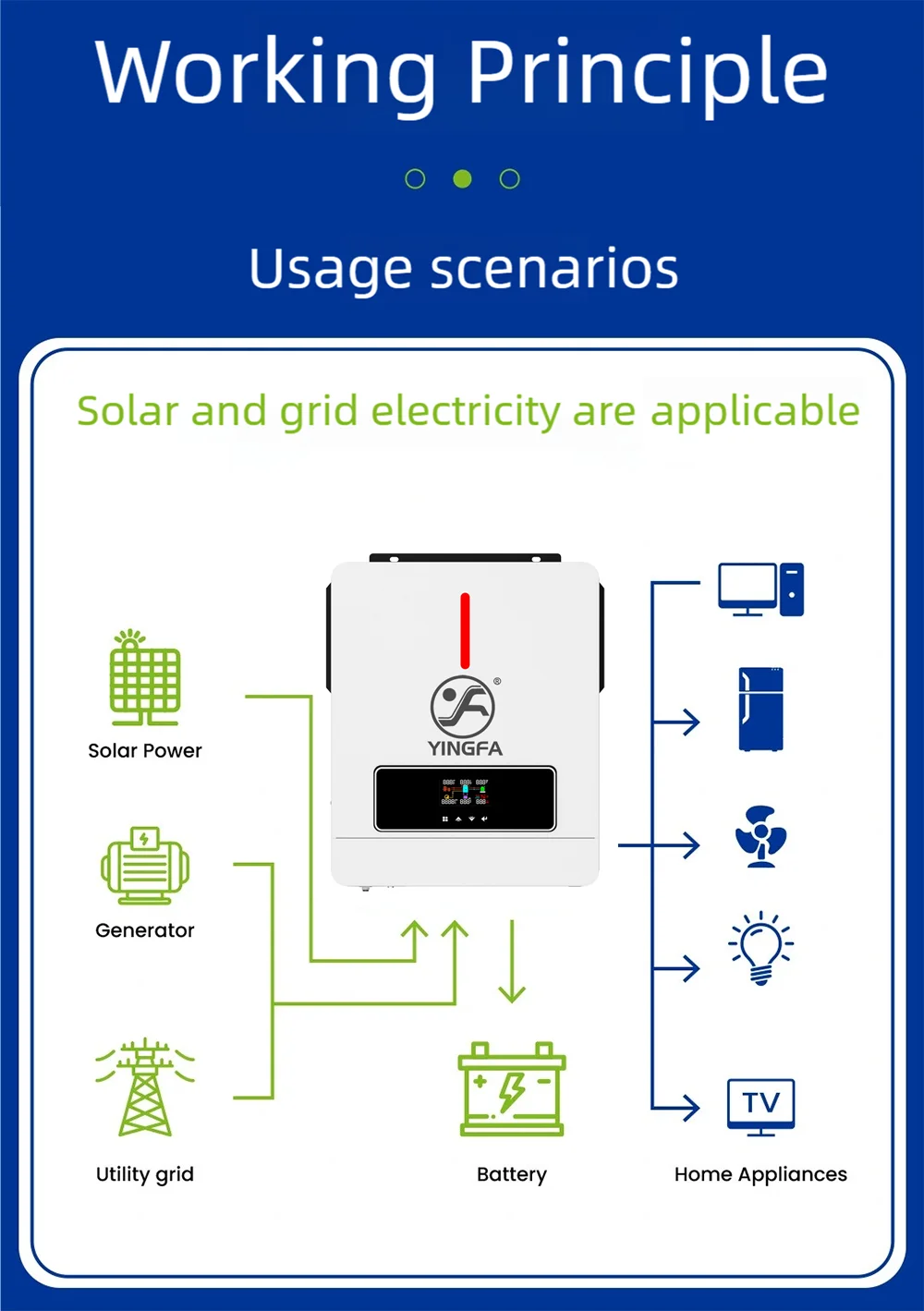

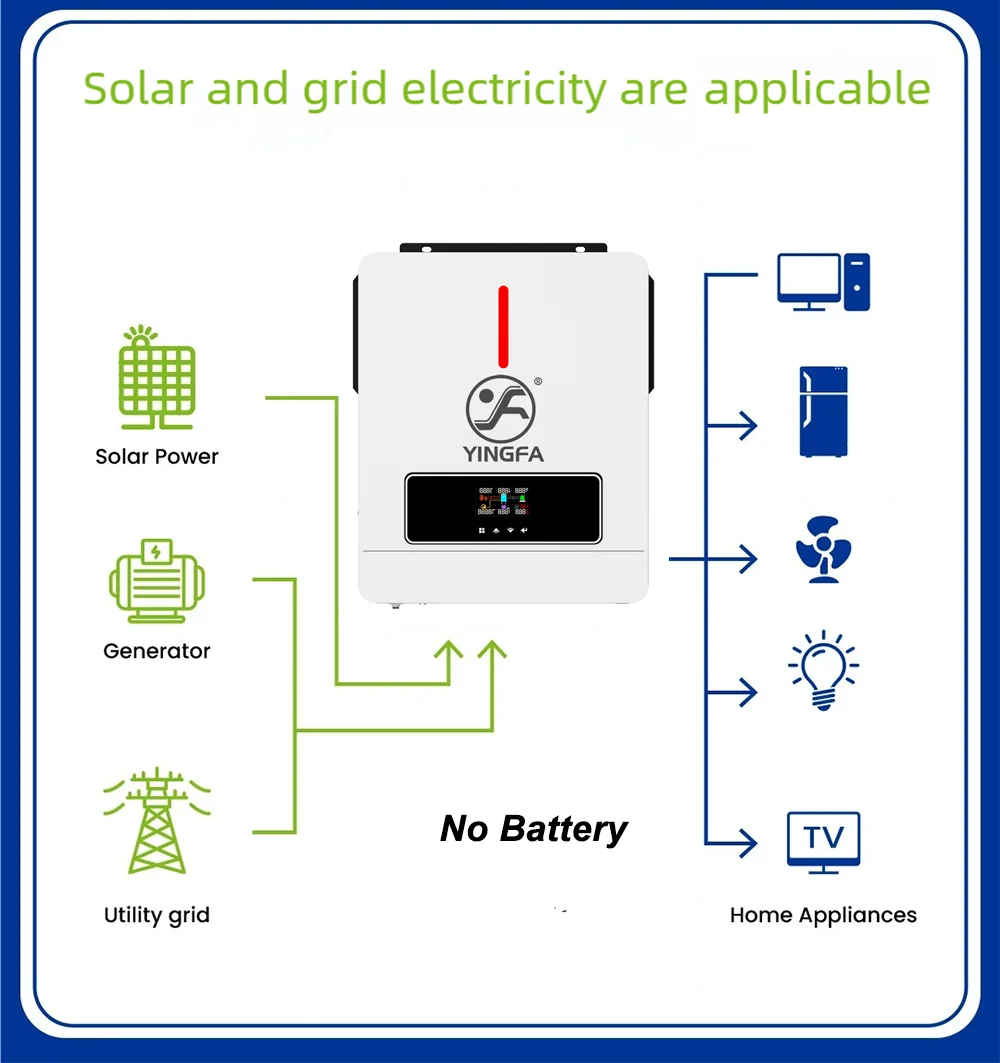

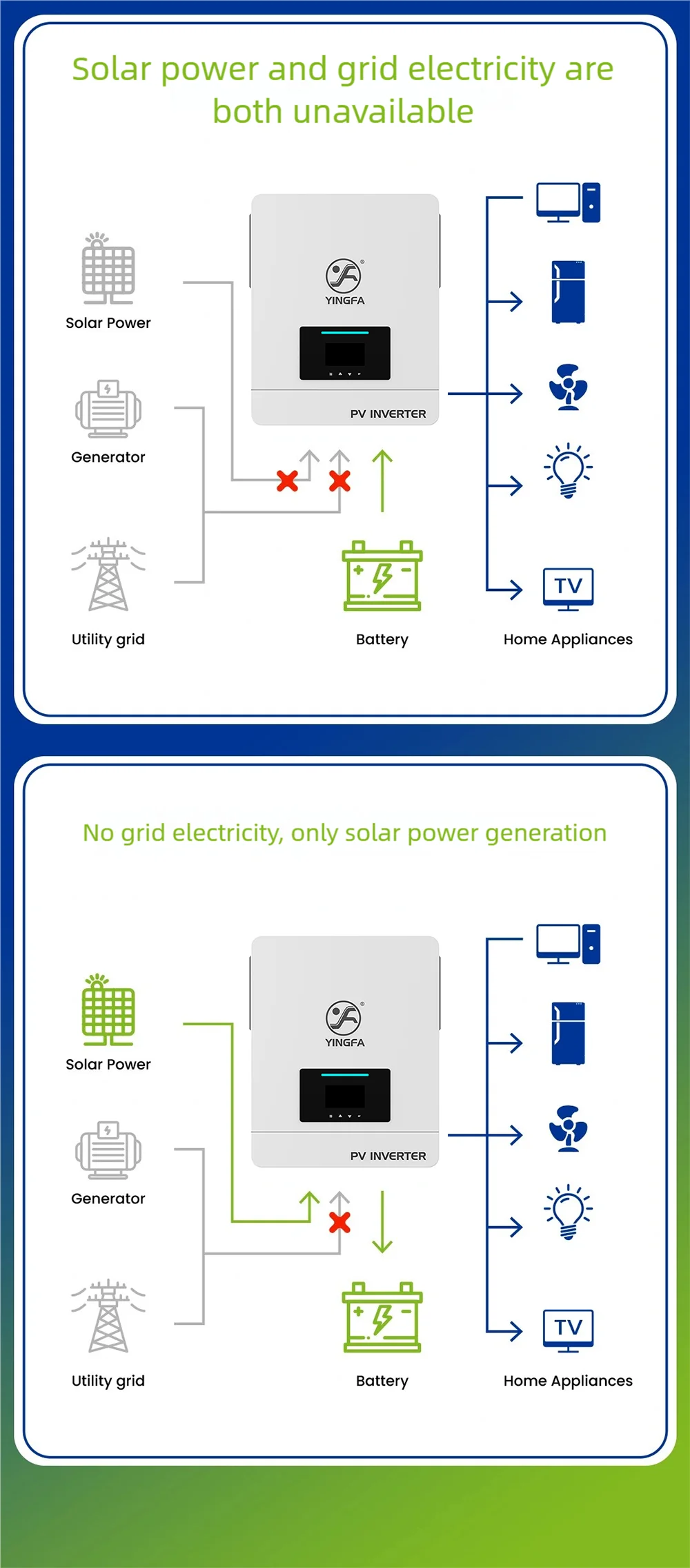

Hybrid Function
It can work with or without battery. Both mode is workable.
It can use PV electricity, grid electricity and battery electricity for home load.
Product Parameter
PV INPUT(DC)
Nominal DC Voltage: 360VDC
Maximum DC Voltage: 500VDC
Start-up Voltage: 60VDC
Initial Feeding Voltage: 90VDC
MPPT Voltage Range: 60~450VDC
Maximum Input Current: 1/18A
GRID OUTPUT(AC)
Nominal Output Voltage: 120VAC
Output Voltage Range: 90-150VAC
Nominal Output Current: 30A
Power Factor: >0.99
EFFICIENCY
Maximum Conversion Efficiency: 98%
TWO LOAD OUTPUT POWER
Full Load: 3600W
Maximum Main Load: 3600W
Maximum Second Load (battery mode): 1200W
Maximum Load Cut Off Voltage: 26VDC
Maximum Load Return Voltage: 27VDC
AC INPUT
AC Start-up Voltage: 110VAC
Auto Restart Voltage: 120VAC
Acceptable Input Voltage: 90~150VAC+2%
Frequency Range: 50+1Hz/60+1HZ
Maximum AC Input Current: 40A
BATTERY MODE OUTPUT (AC )
Nominal Output Voltage: 120VAC

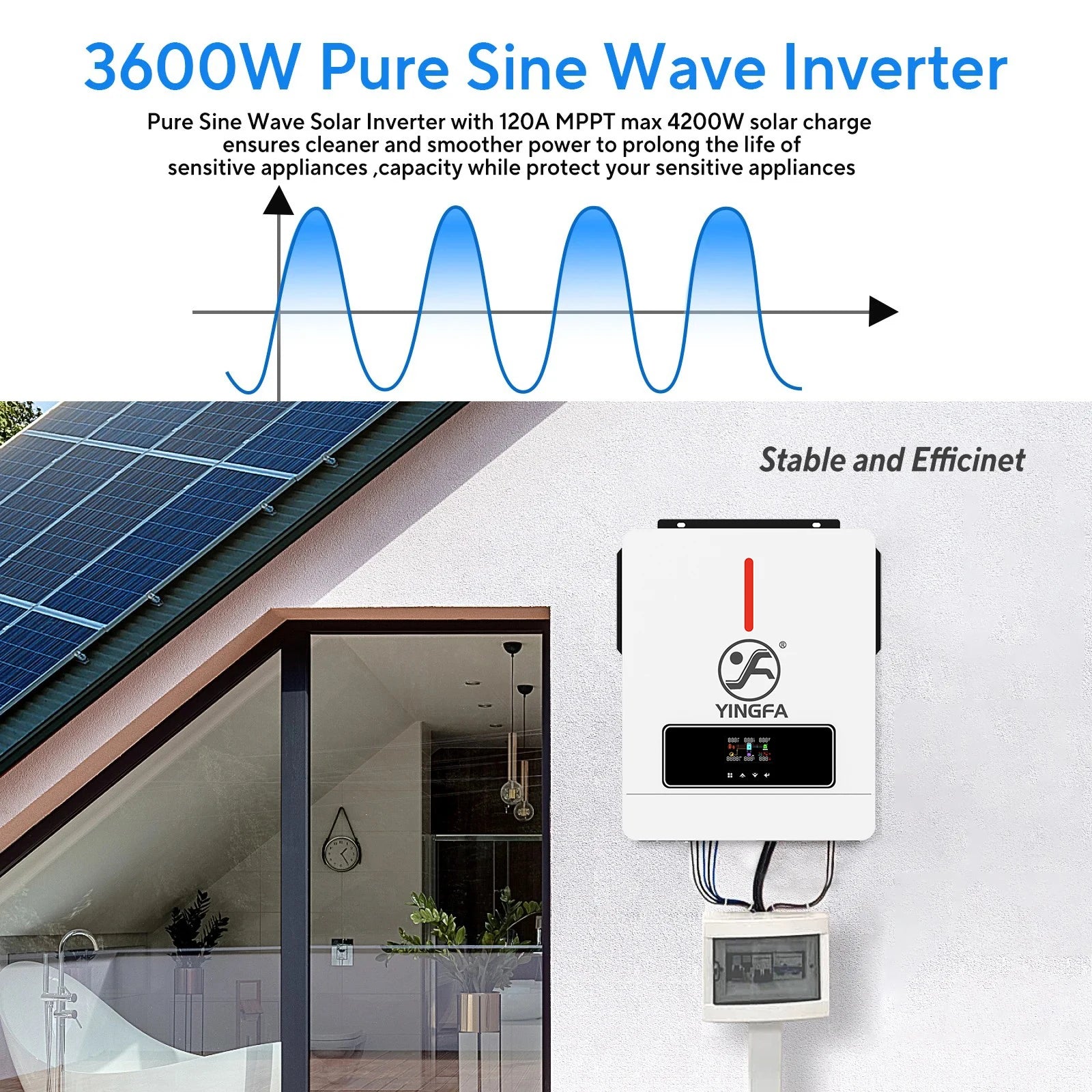

Output Waveform: Pure Sine Wave
Efficiency (DC to AC): 94%
BATTERY & CHARGER
Maximum AC Charging Current: 100A
Nominal DC Voltage: 24VDC
Maximum Solar+AC Charging Current: 120A

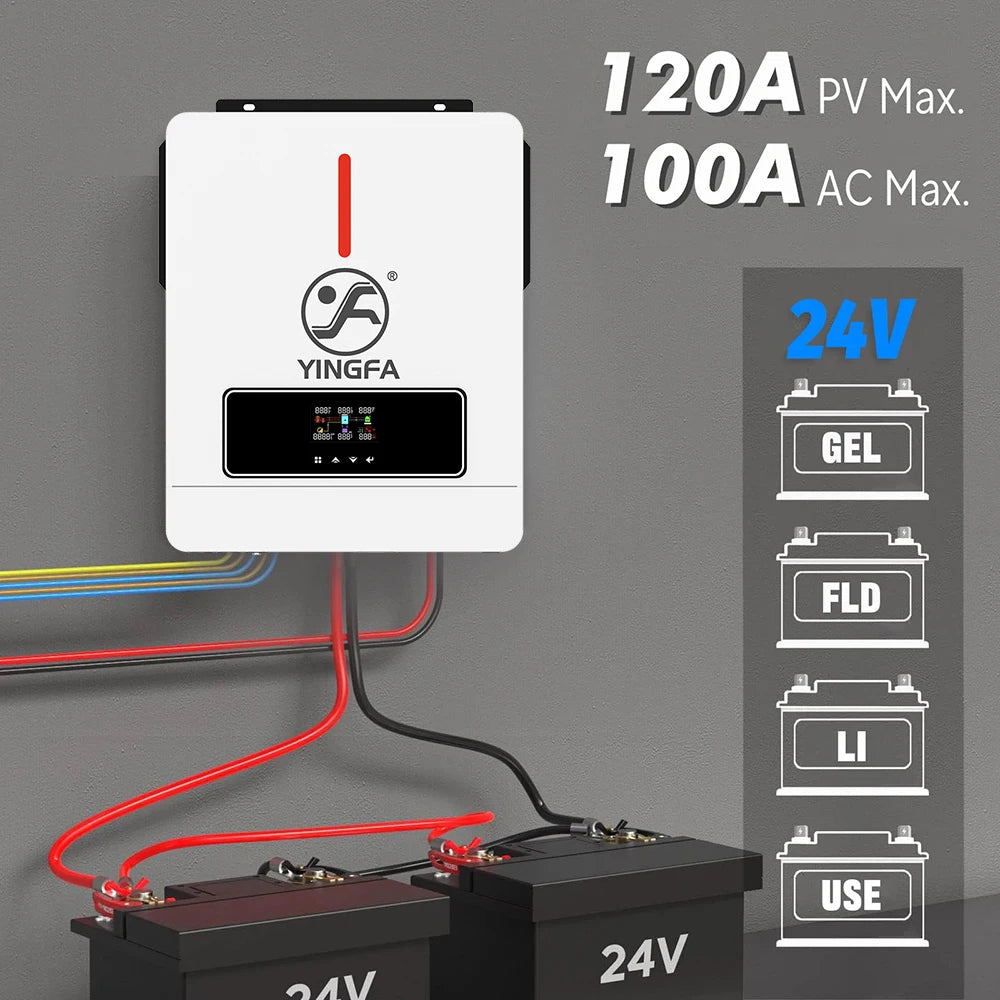

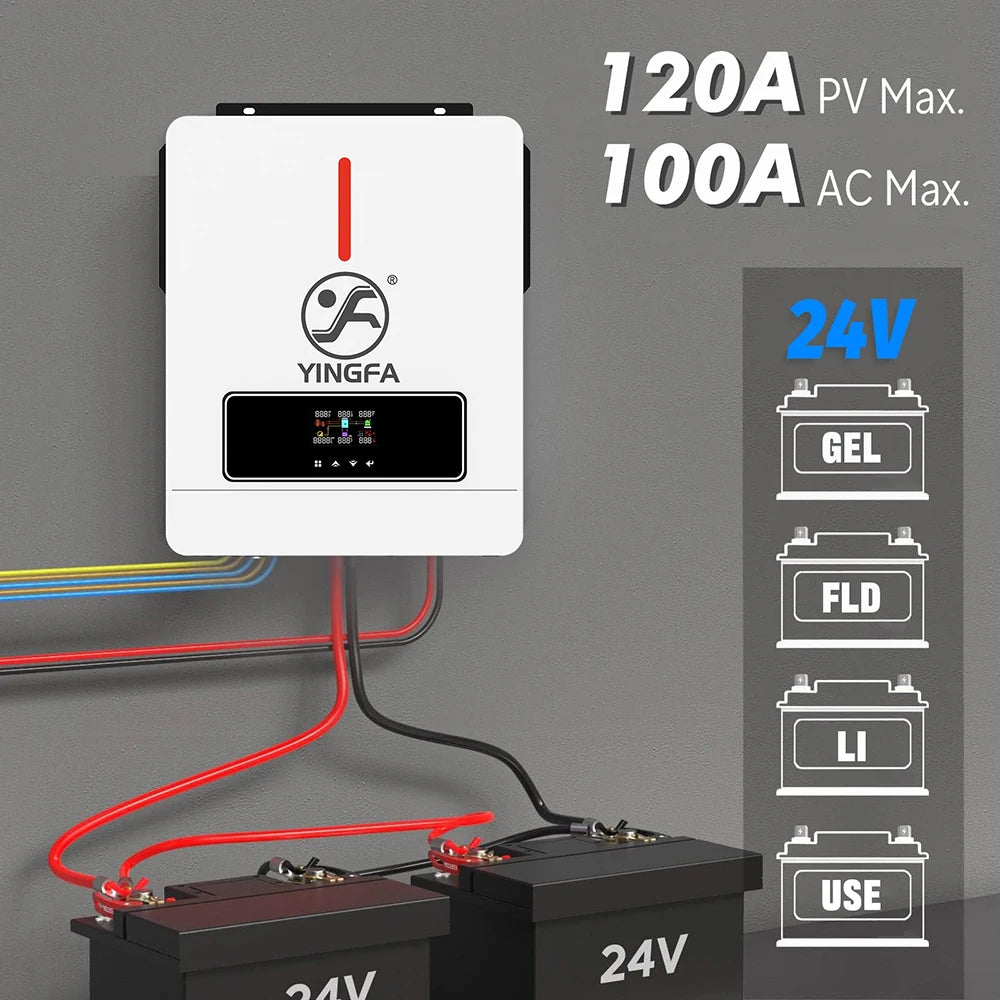

Battery Connection
A. Lead Acid Battery, easy to connect, low cost. (Recommend, any brand is ok.)
3.6kW inverter: connect to 2 pieces 12V battery.
B. Lithium battery.
Must support Pylon or PACE BMS communication protocol.
If Battery Necessary
Our inverter can work without battery.
After-sale Service
1. 1-year warranty
2. Technical support within 12 hours.
| Color |
Without WIFI, With WIFI |
|---|---|
| Output Voltage |
110-120V |
| Ships From |
United States |
