Description: PowMr USA 60A MPPT Solar Charge Controller Can Parallel 12PC Charging 12V 24V 36V 48V LifePo4 Battery Max 160VDC Solar Panel
Application: Charger Controller, Voltage Controller, Solar System Controller, Solar Working Station
Auto Solar Panel Battery Charge Regulator: LCD Display Solar Charge Controller
Battery: 12V 24V 36V 48V

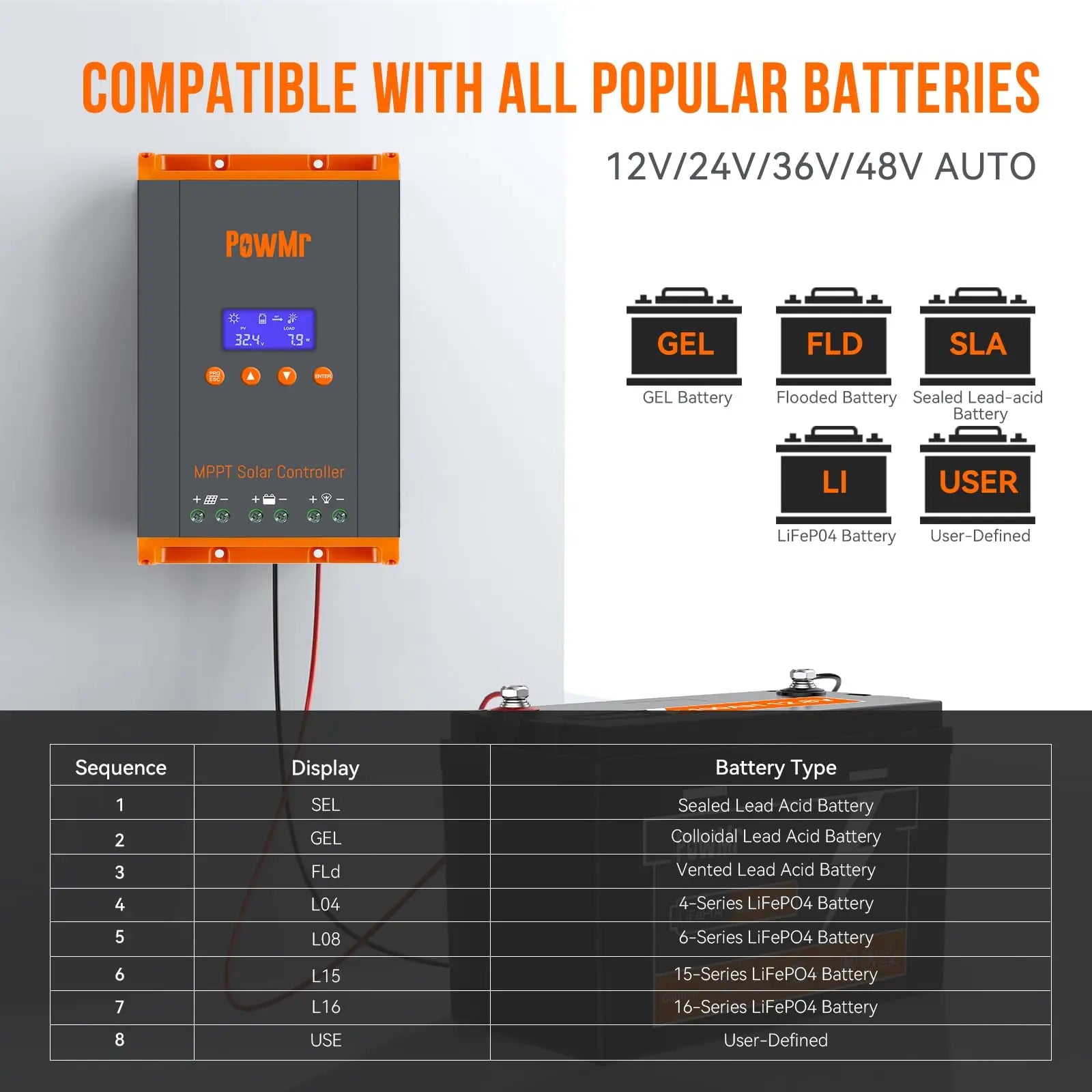

Battery type(default is Sealed): Vented/ Sealed / Gel / NiCd / Lithiu
Brand Name: PowMr
Certification: CE
Charging mode: MPPT Maximum power point tracking
Dispaly: Backlight LCD Controller
Feature: Support parallel up to 12 units
Is Smart Device: Yes
Maximum Current: MPPT 60A
PV utilization: ≥99% For 100% MPPT Technology
The maximum PV input power: 12V system (720W) 24V system (14
The maximum PV input voltage (Voc): DC160V
Reading before ordering!
①About Shipping：When the item is in stock in local warehouse, the package will be shipped directly from the local warehouse, and the package will arrive in 3-7 days. Let you enjoy tax-free service.
②About returns:Please check the product information and description before ordering, and think before ordering the right product. We does not accept returns and refund disputes not related to product quality!
When you have questions before order, please leave messages and I will reply you within 24 hours.
PowMr EU 60A MPPT Solar Charge Controller Can Parallel 12PC Charging 12V 24V 36V 48V LifePo4 Battery Max 160VDC Solar Panel
Introduction:
Our HHJ series solar controllers are suitable for a wide range of solar energy applications. We offer a user-friendly custom open-program configuration interface, making the configuration process of solar energy systems quicker and smoother. It also provides more possibilities for expanding solar energy systems. Whether you are setting up a small-scale residential standalone solar system or expanding your solar energy project, the HHJ series solar controller will be an indispensable partner.
Feature:
⚫ Integrated Charging Presets
⚫ Versatile Application
⚫ Multi-Stage Charging Algorithm
⚫ Maximum Power Point Tracking (MPPT) Technology
⚫ High-Efficiency Charging

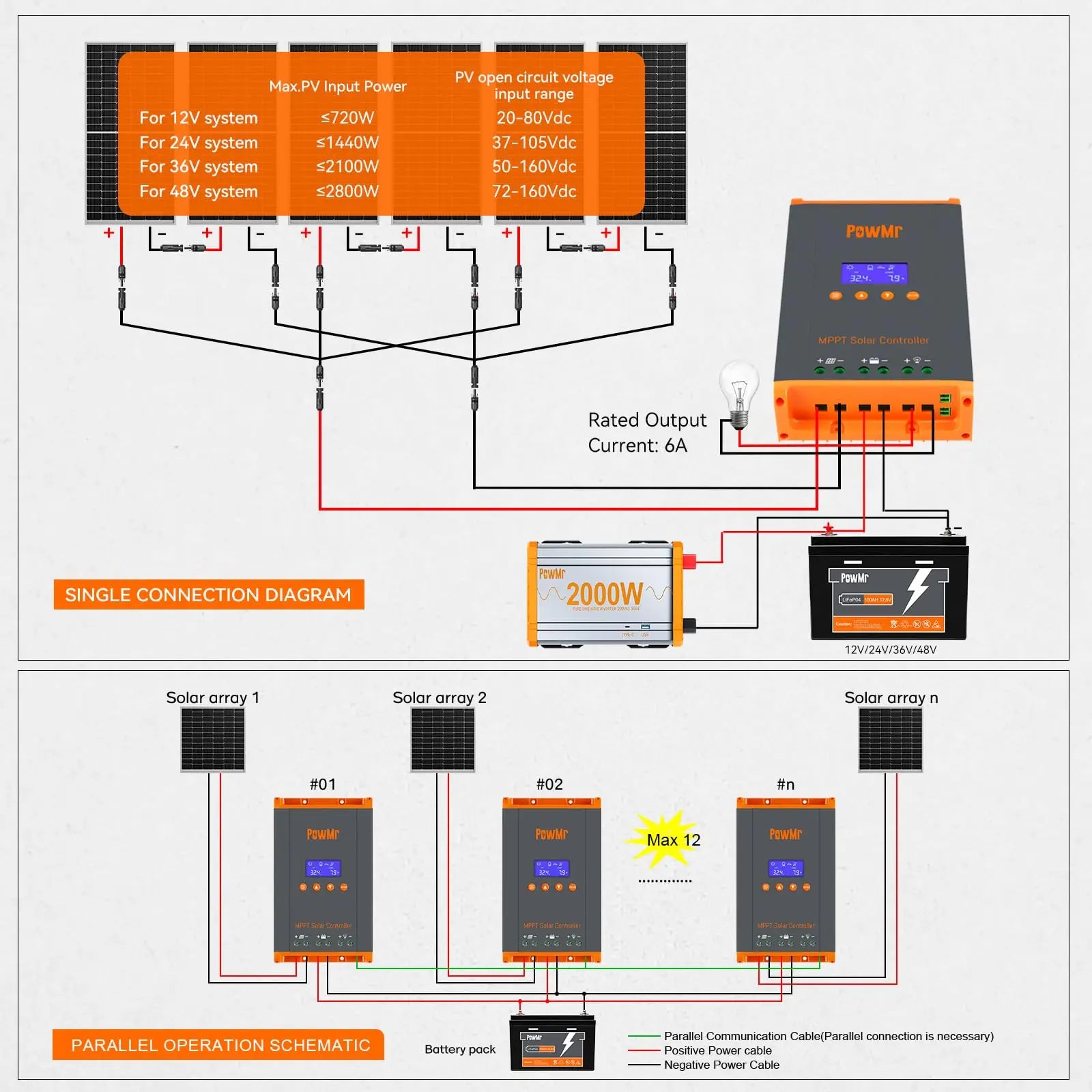

⚫ Supports Up to 12 Units in Parallel
⚫ Adaptive Boost Charging
⚫ Durable and Secure
⚫ External Temperature Probe Configuration
⚫ Forced Air Cooling
⚫ Lithium Battery Activation
Warning: Do not charge lithium batteries when the temperature is below 0°C.
Specification:
Models |
HHJ-60-PRO |
Solar Input Parameters | |
Max. Solar Array Open-Circuit Voltage |
160V |

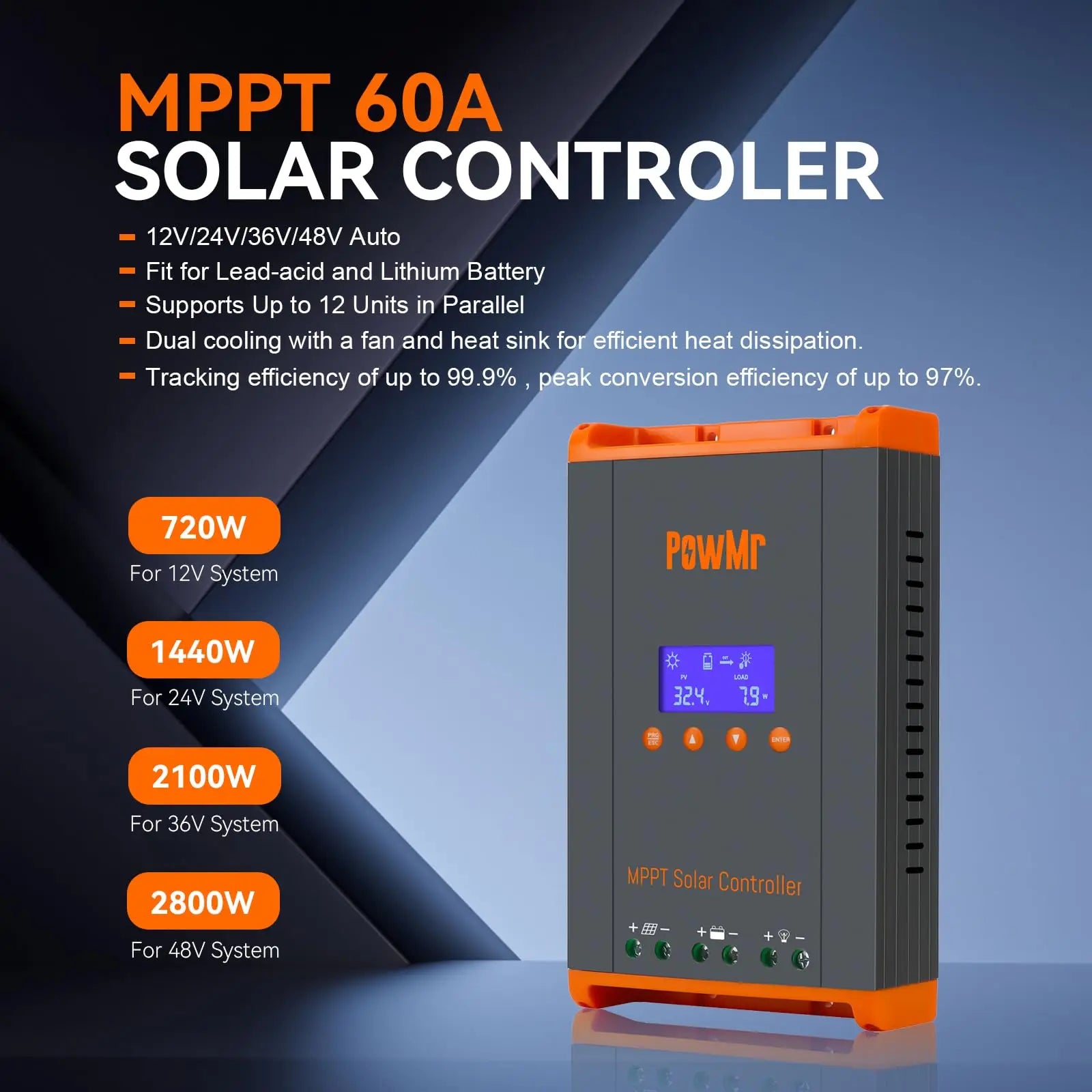

Maximum Input Power: | |
For 12V System |
720W |
For 24V System |
1440W |
For 36V System |
2100W |
For 48V System |
2800W |
Input Voltage Range: | |
For 12V System |
20V~80V |
For 24V System |
37V~105V |
For 36V System |
50V~160V |
For 48V System |
72V~160V |
Battery Charging Parameters | |
Charging Technology |
MPPT |
Charging Algorithm |
3 stages |
Battery Voltage Auto-Detection | |
12V System |
DC9V~DC15V |
24V System |
DC18V~DC29V |
36V System |
DC30V~DC39V |
48V System |
DC40V~DC60V |
Overcharge Protection Voltage |
60V |
Charging Limit Current |
61A |
Maximum Efficiency |
≥98. 1% |
Solar Utilization Rate |
≥99% |
Load Terminal Output | |
Rated Output Current |
6A |
Maximum DC Output Current |
8A |
Protection | |
Temperature Protection |
75℃ / 167 ℉ |
Fan Start Temperature |
>45℃ / 104℉ |
Fan Shutdown Temperature |
<40℃ / 95℉ |
General Specification | |

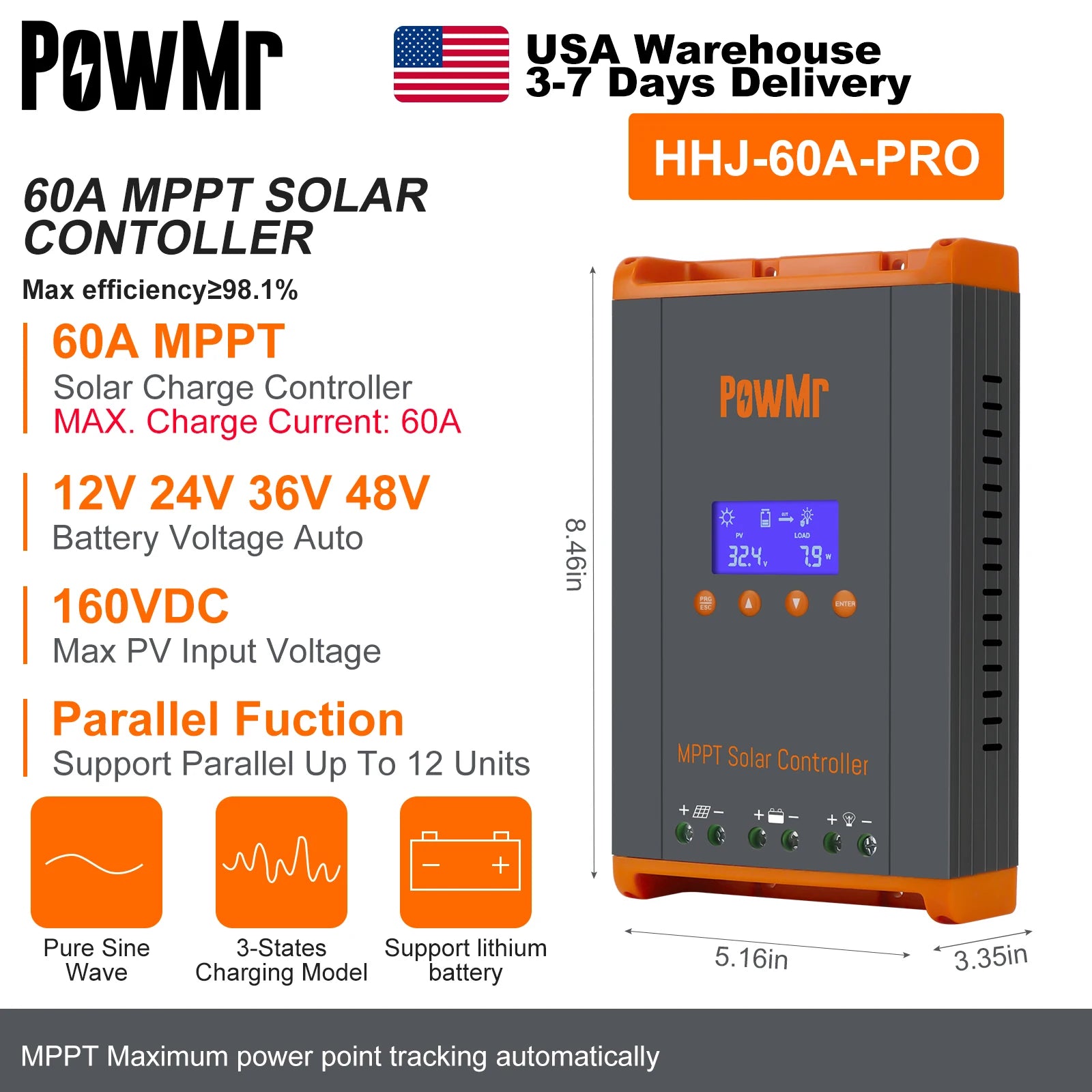

Dimensions |
215x130x85mm /8.46x5.12x3.35in |
Net Weight |
990g / 2.18lb |
Electromagnetic Compatibility |
EN61000, EN55022, EN55024 |
Protection Level |
IP21 |
Operating Temperature |
-20℃ ~ +55℃ / -4℉ ~ 131℉ |
Storage Temperature |
-40℃ ~ +75℃ / -40℉ ~ 167℉ |
Product Overview:
| Color |
MPPT 60A-Parallel, MPPT 60A-Hot |
|---|---|
| Rated Voltage |
12V 24V 36V 48V |
| Ships From |
United States, Mexico |
