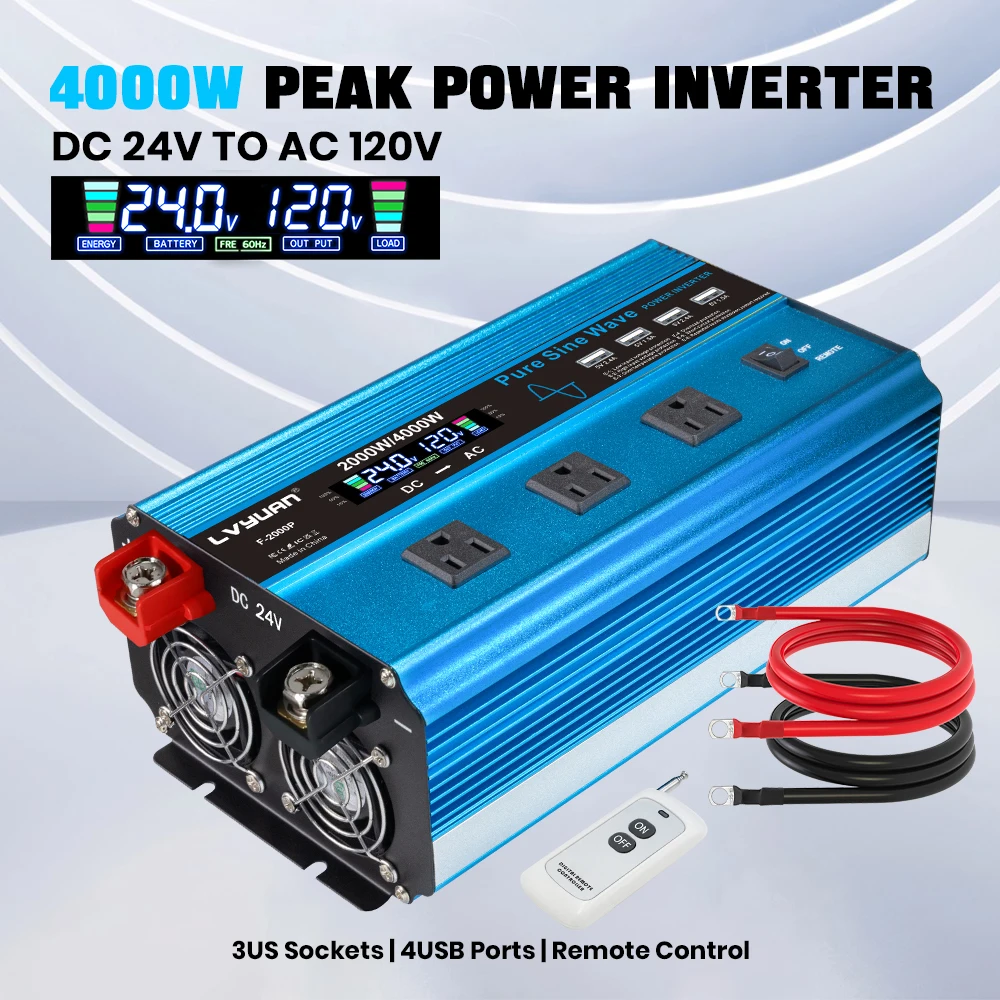

Description: 4000W Pure Sine Wave Inverter DC 12v/24v To AC 110v 60HZ Voltage Converter Car Solar Power Inverter
Certification: CE
Conversion Efficiency: 0.9
Input Voltage: DC 24V
Output Frequency: 60 Hz
Output Voltage: AC 110V±10%
Rated Power: 2000W
Socket Type: USA
Specifications
Output Waveform : Pure Sine Wave

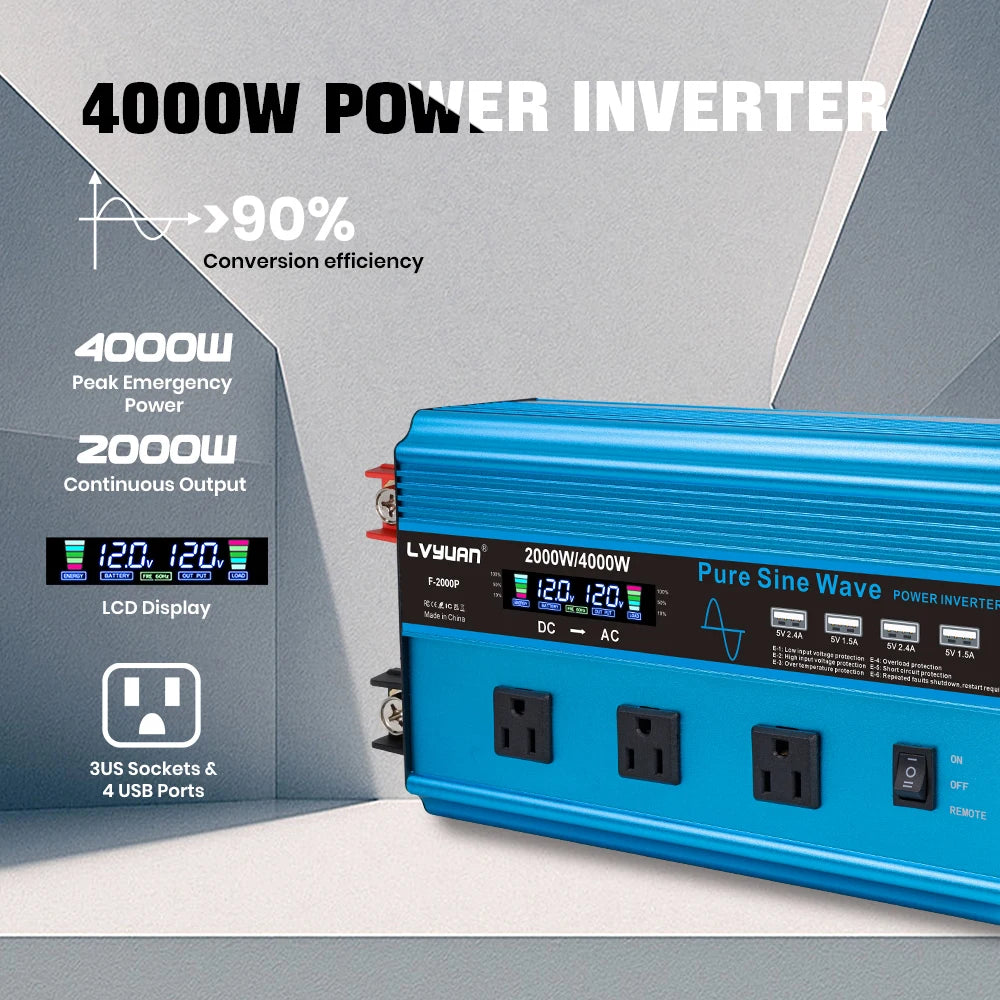

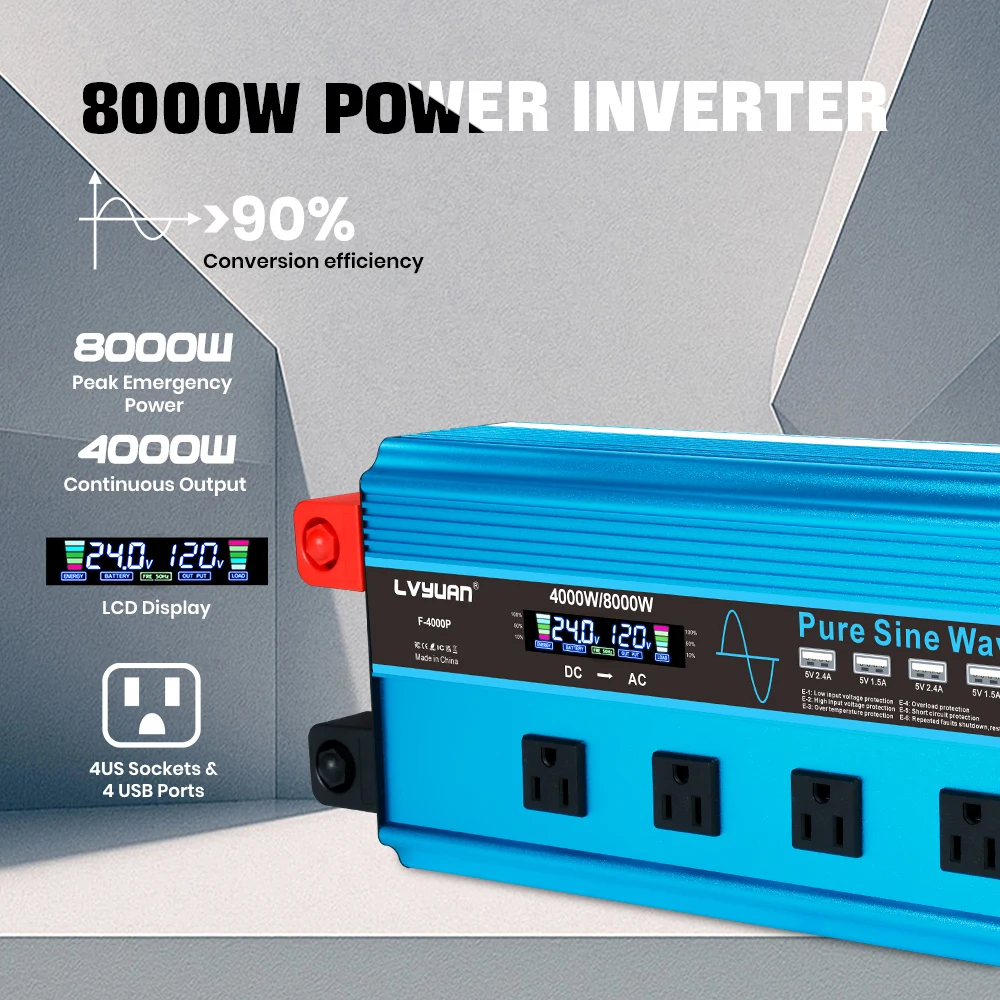

Peak power:4000W/6000W/8000W
Continues Output Power:2000W/3000W/4000W
Frequency:60HZ士0.2HZ
Inversion Efficiency :>90%
Input DC Voltage :12V OR 24V
DC Voltage Range:10V-15V OR 20V-30V
Output AC Voltage : 110V
AC Voltage Range :100V-120V

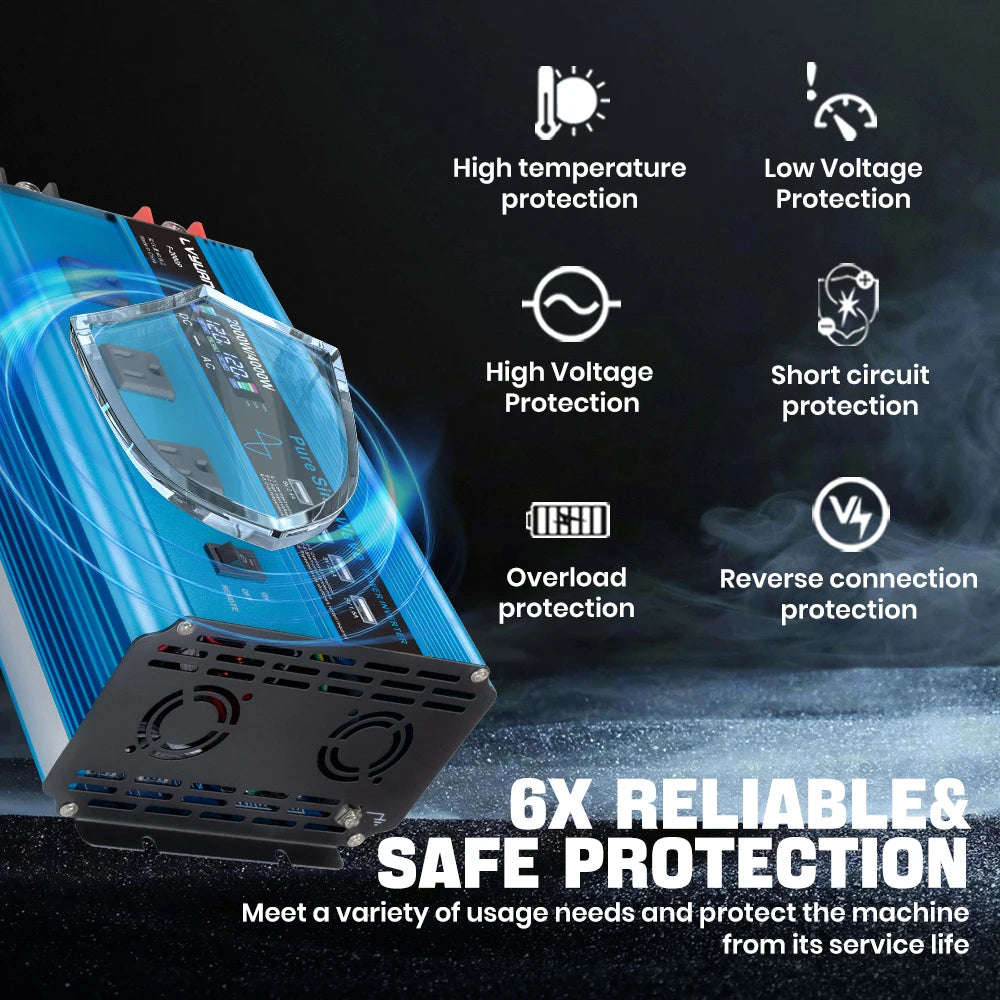

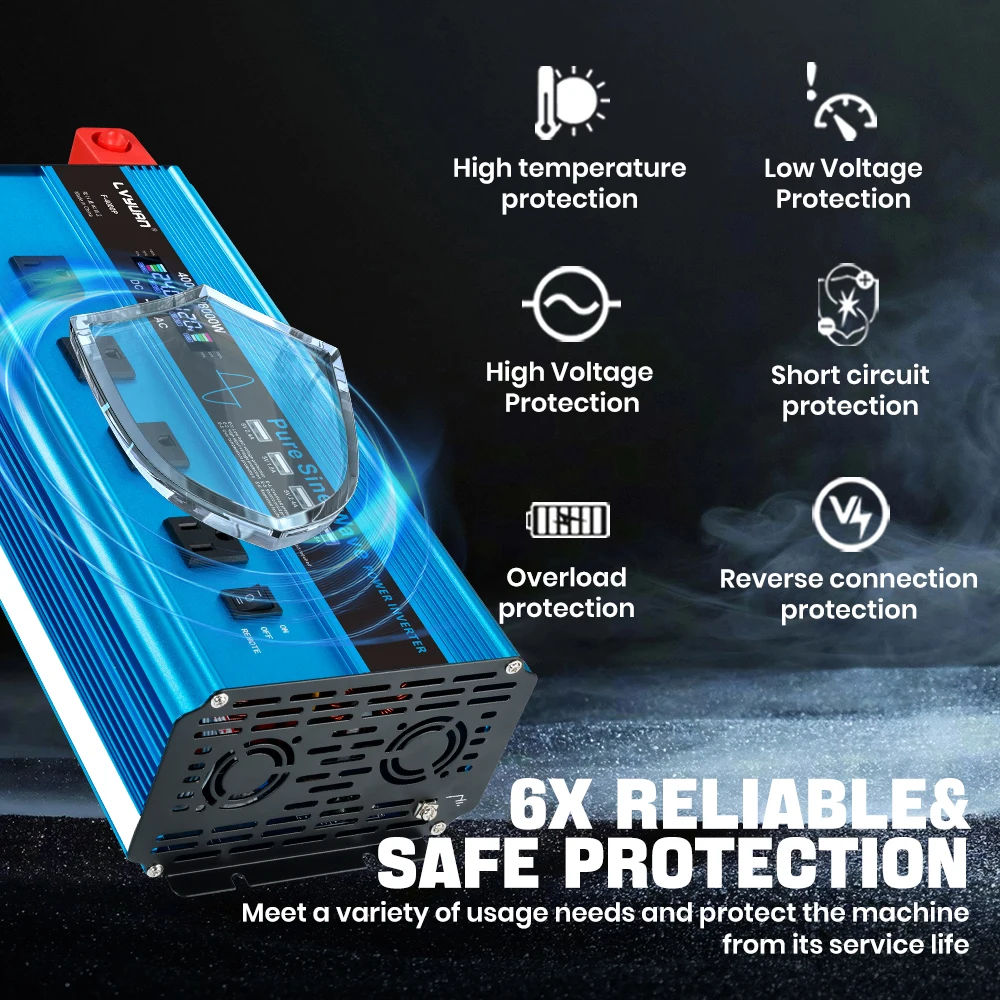

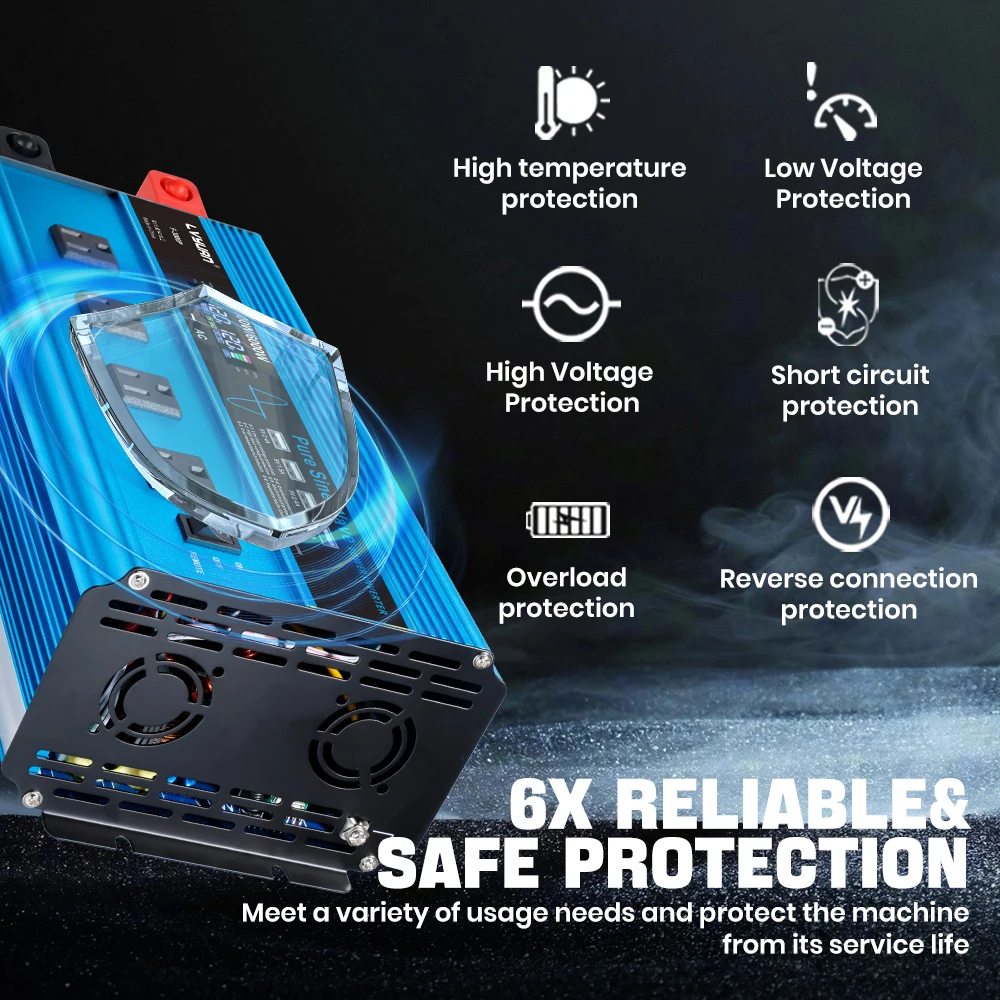

Low Voltage Shut Down:10V DC0.5V OR 20V DC0.5V
Over Load :Shut Off Output
Over Voltage Shut Down:15V0.5V OR 30V0.5V

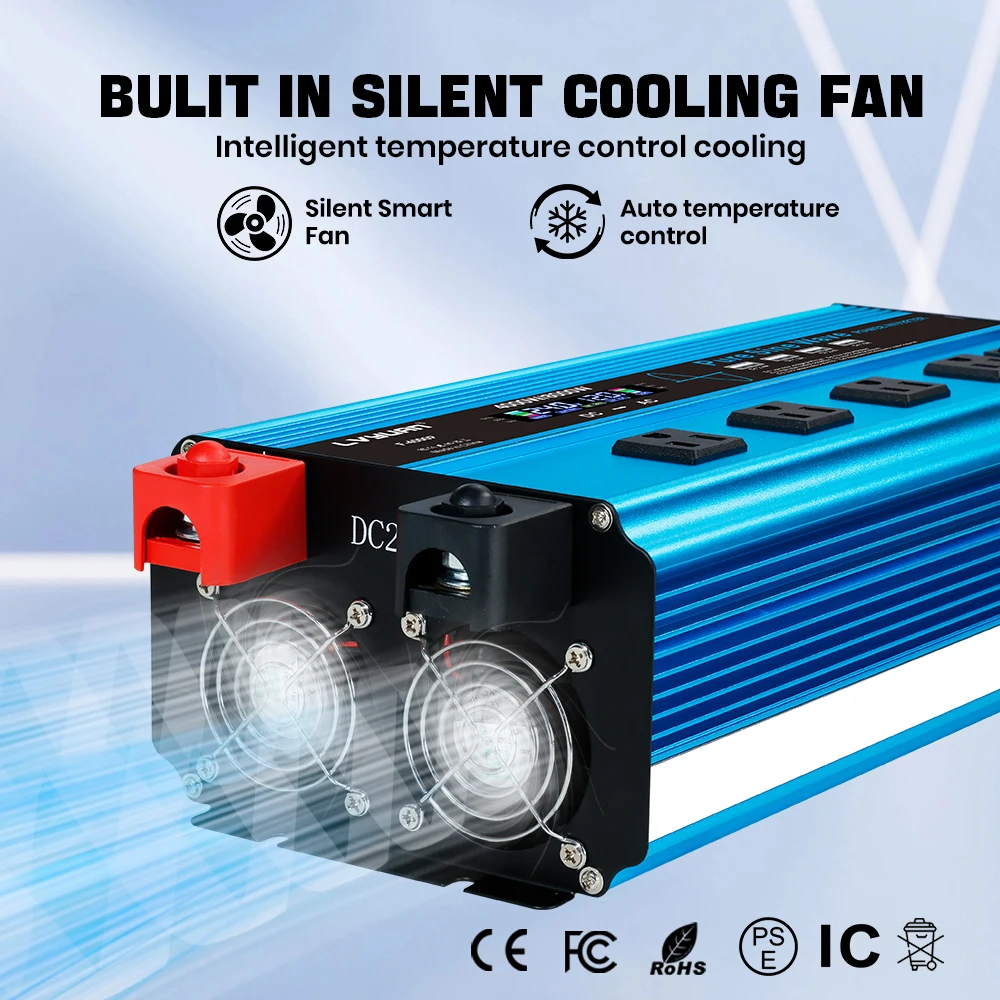

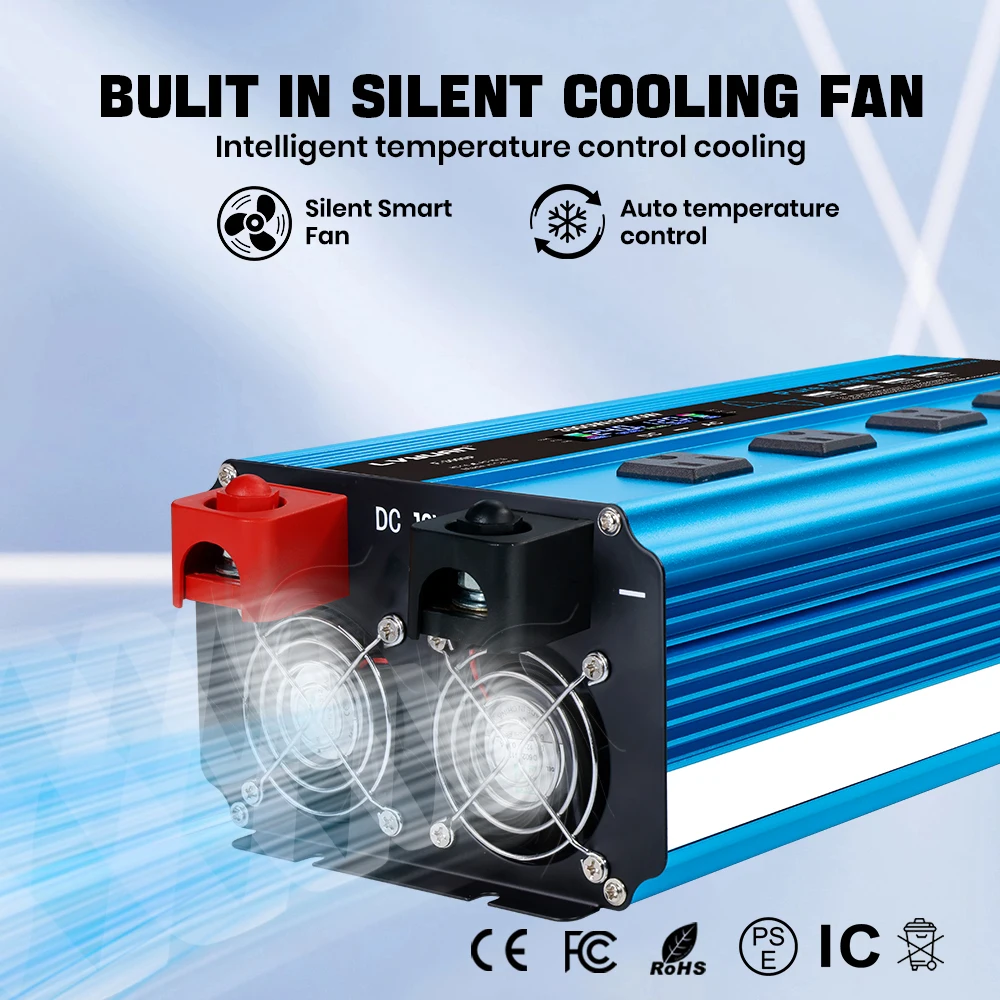

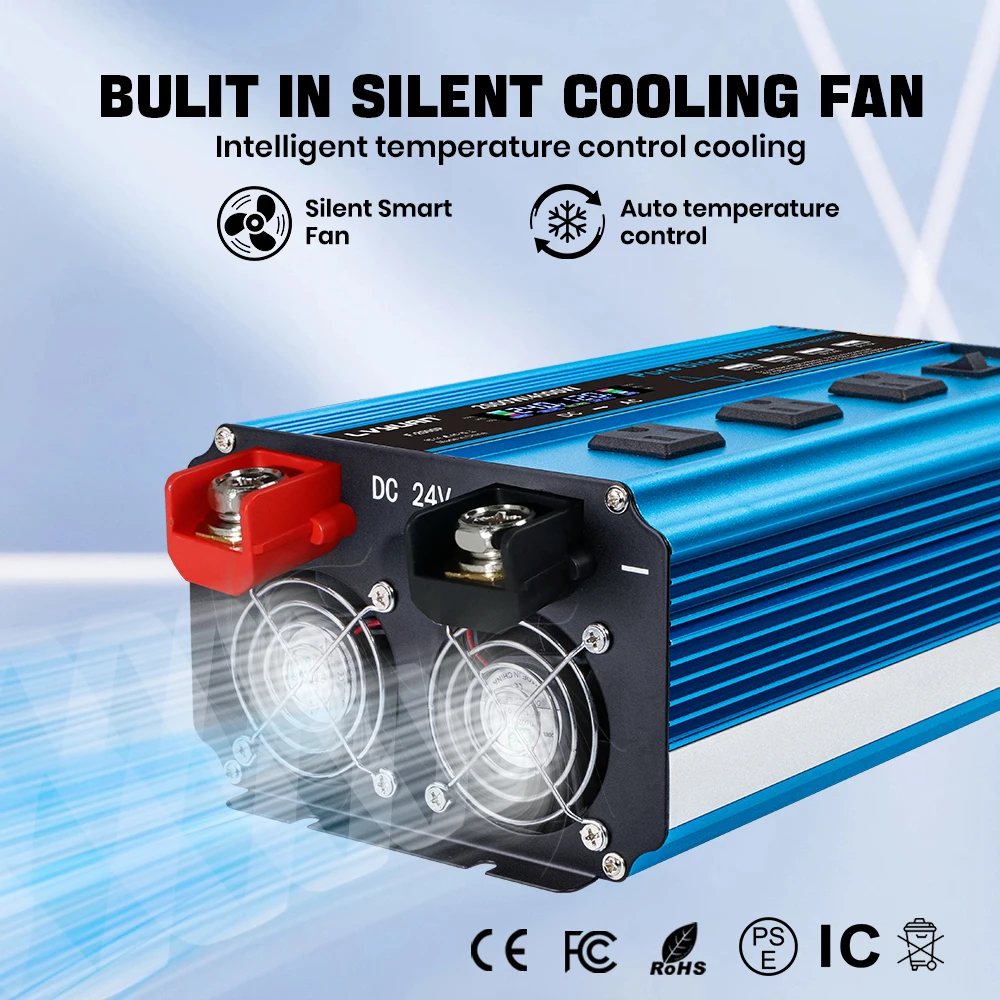

Over Thermal : Shut Off Output Automatically
Fuses : Short Circuit
Start : Soft Start
After-sales service : One year warranty
No load current: the no-load consumption current is depends on the size of inverter
Material:Aluminum
AlloySocket Stvle :US Socket

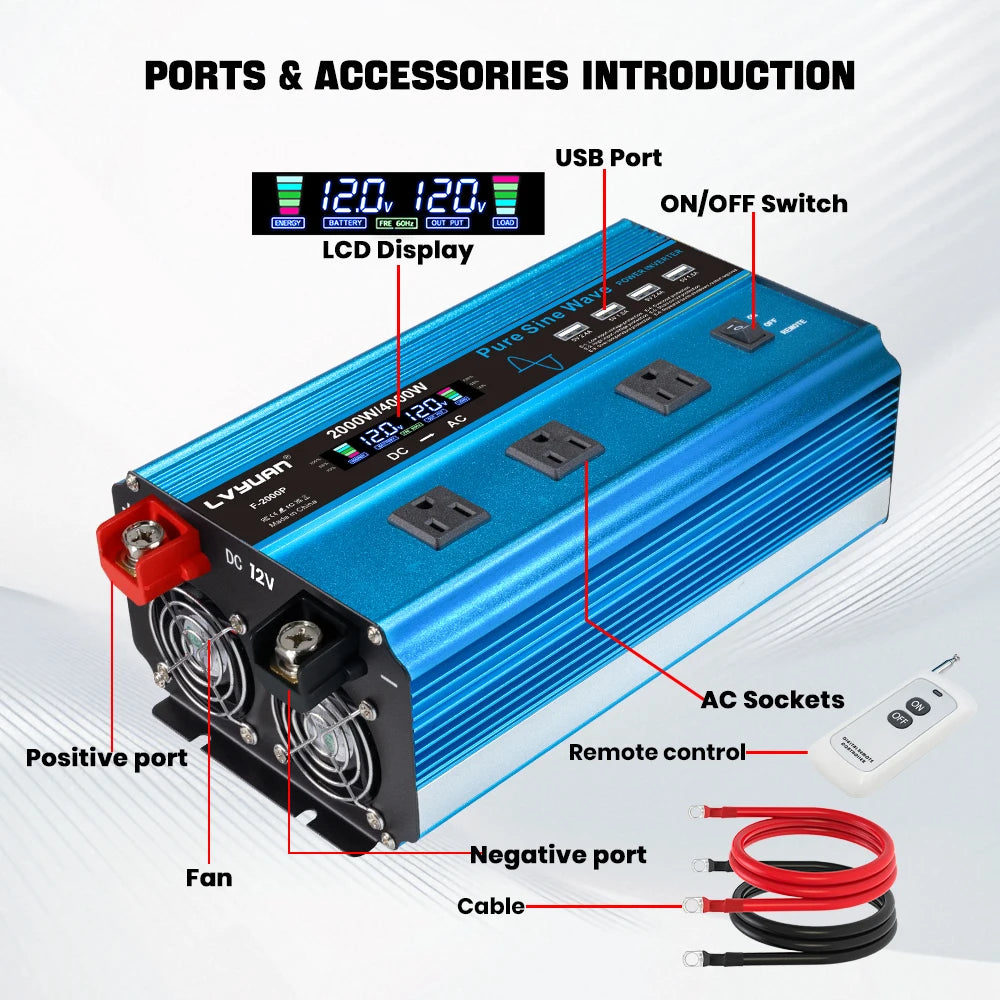

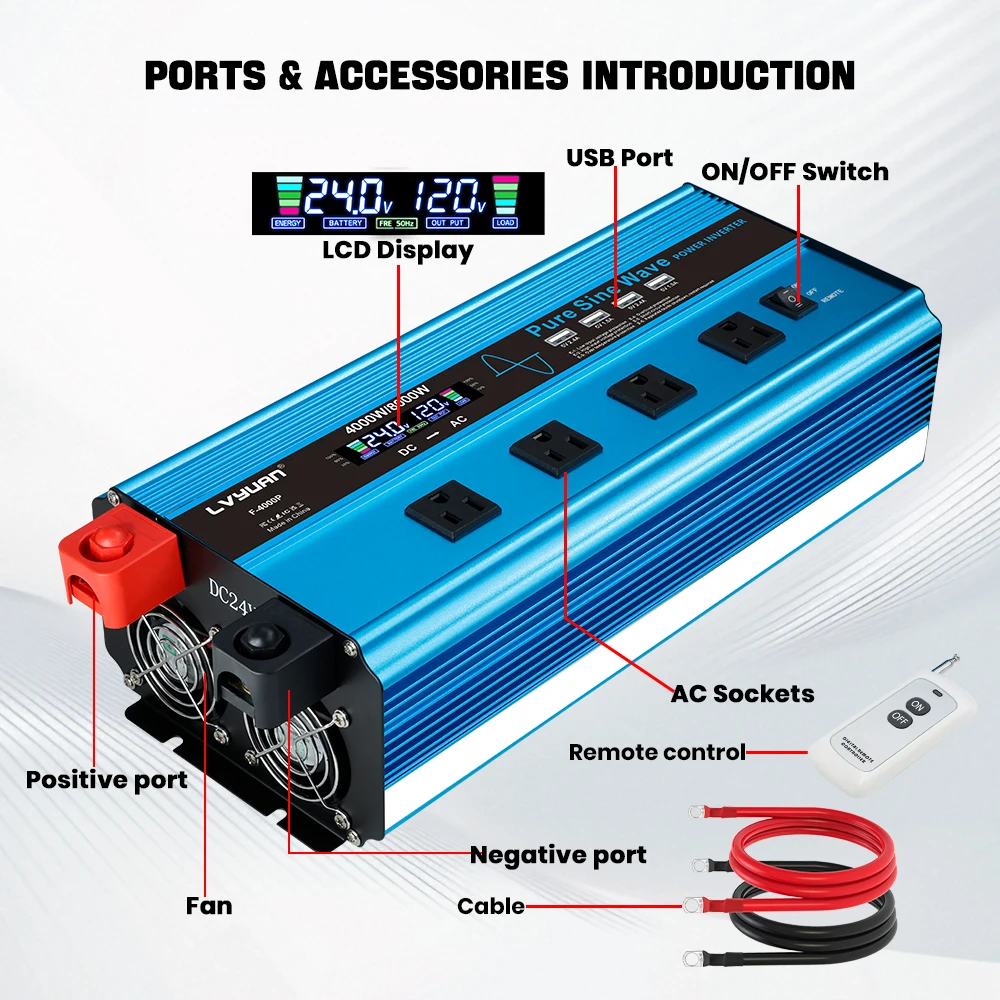

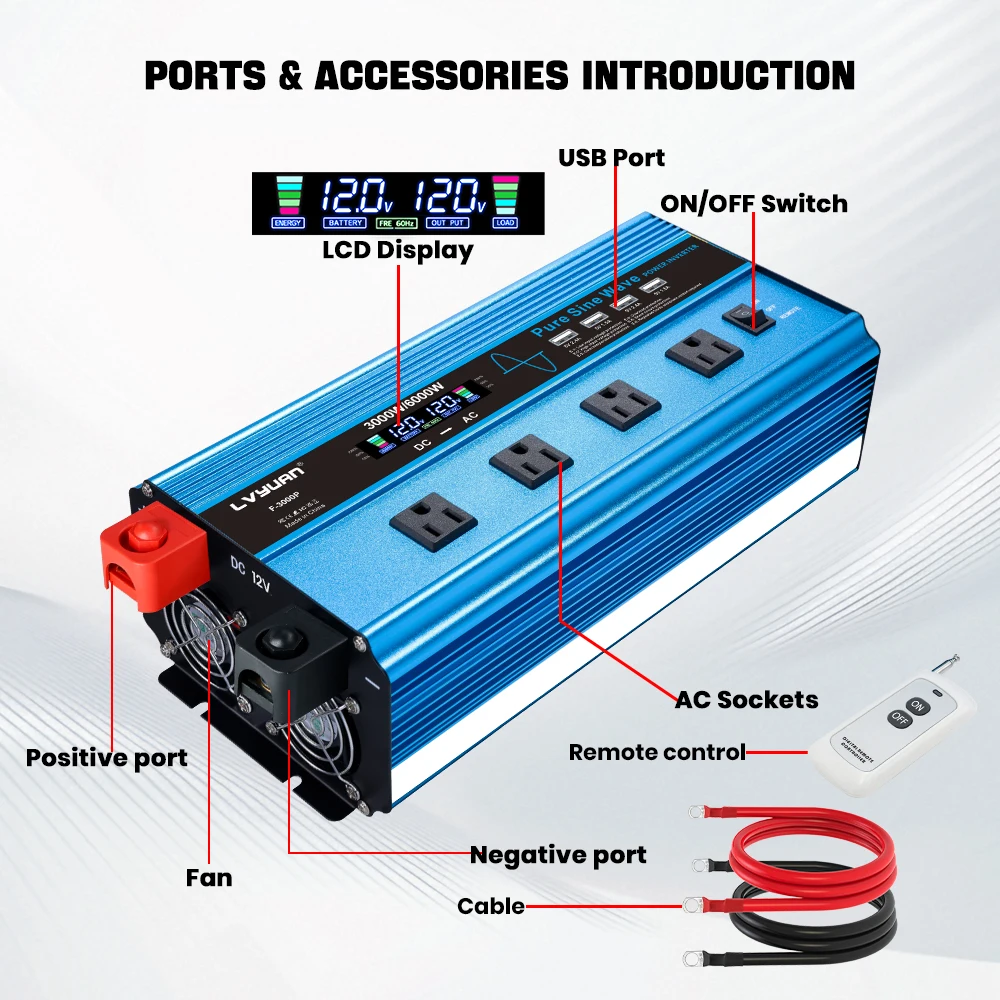

Packageinclude:
1 x Inverter
2 x Battery Cable
1 x User Manual
PLEASE NOTE
1. Please ensure that the rated power is higher than the appliance you want to apply.
2. lf you want to run several devices at the same time, you should refer to the total wattage.
3. If you want to run the inductive load for a long time, choose the Pure sine wave inverter.
4. Please use the standard battery cables we sent, or a full power output may not be guaranteed. Andthe spare fuses in the package are just used when the original ones are burned by accident.
5. Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.
6. Please do not overload. lf your applications are inductive loads, please choose the inverters whosecontinuous power is 3-7 times higher than the watts of your appliances. such as fridge, icebox, drillwashing machine, water pump, microwave oven, oven, vacuum cleaner, hair dryer, etc. with motor inside.
Attention: Car cigarette lighter can only support a power within 100W
Frequently Asked Questions
How to buy inverter SERVICE UPGRADE
Firstly, please confirm your battery voltage and battery capacity.
If your battery voltage is 12V, please choose a 12V inverter. The battery voltage must be consistent withthe inverter model. The larger the battery capacity, the greater the electrical power that can be driven.How much power can the battery bring = voltage of the battery * battery capacity *0.8.
For example:How much power can the battery of 12V60AH bring =12*60*0.8=576W electrical appliances
What electrical appliances should bring?
Electrical appliances are divided into inductive load appliances and resistive load appliances
Resistive load appliances: computers, televisions, fans, lights and other household appliances.
Inductive load appliances: refrigerators, washing machines, hand drills, air conditioners, water pumps.air pumps,etc.
The instantaneous power of inductive load electrical appliances is relatively large and has peak power.which is usually 3-10 times of its rated power
For example, for a 300W air conditioner, the starting power is generally 3 times-10 times and so an inverter with a peak power greater than 3000W is needed to bring it
Attention! Although the power of LED bulb is very small, sometimes the inverter of 2200W can't drive, because LED or energy-saving bulb is divided into national standard and non-national standard, and non-nationastandard bulb is not standardized. Please choose national standard bulb, so that the inverter can drive normally! This modified wave inverter with energy-saving lamps, LED lamps, induction cooker and welding machine may damage the inverter, SO it is reconmmend pure sine wave power inverter.
| Color Name |
P4000W-24V-110V-60hz, P4000W-12V-110V-60hz, P6000W-24V-110V-60hz, P6000W-12V-110V-60hz, P8000W-24V-110V-60hz, P8000W-12V-110V-60hz |
|---|---|
| Ships From |
United States |
