Description: PV Combiner Box With 4 or 6 String connections at 10A or 15A Rated Current Fuses for On / Off Grid Solar Panel System
Door Opening Method: Latch Opening / Rotary Lock Opening
Fuse Holder Specification: DC 15A/500V
Main Material: ABS Plastic Material+RAL7035 Grey-White Finish or 0.8 mm Cold Rolled Steel Material+RAL7035 Grey-White Coating
Mounting Plate: Detachable Mounting Plate Material
Net Weight (including all accessories): 4.1 lbs / 1.86 kg, 8.29 lbs / 3.76 kg, 7.1 lbs / 3.22 kg, 8.55 lbs / 3.88 kg
Number of Inputs: 4 / 6
Number of Outputs: 1
Protection Rating: IP65
Rated Current of Fuse: DC 10A / DC 15A
Rated Operating Voltage: DC 500V
Sealing Strip: PU Polyurethane Foam Material(Black)
Specification of Main Circuit Breaker: 63A 2P DC500V / 125A 2P DC500V
Surge Protector: 40KA 2P DC500V
Enhance Your Solar Setup with Our PV Combiner Box
Reliable and Efficient Power Distribution for Your Solar System
The SucceBuy PV Combiner Box is designed to simplify and protect your solar panel connections. Whether you're setting up a grid-tied or off-grid system, this combiner box ensures safe and organized connections, complete with 10A DC fuses, a circuit breaker, and lightning protection. Perfect for both residential and commercial solar installations.
Built to Last with Unmatched Reliability IP65 Rated Enclosure Continuous Lightning Protection Effortless Installation
Key Features

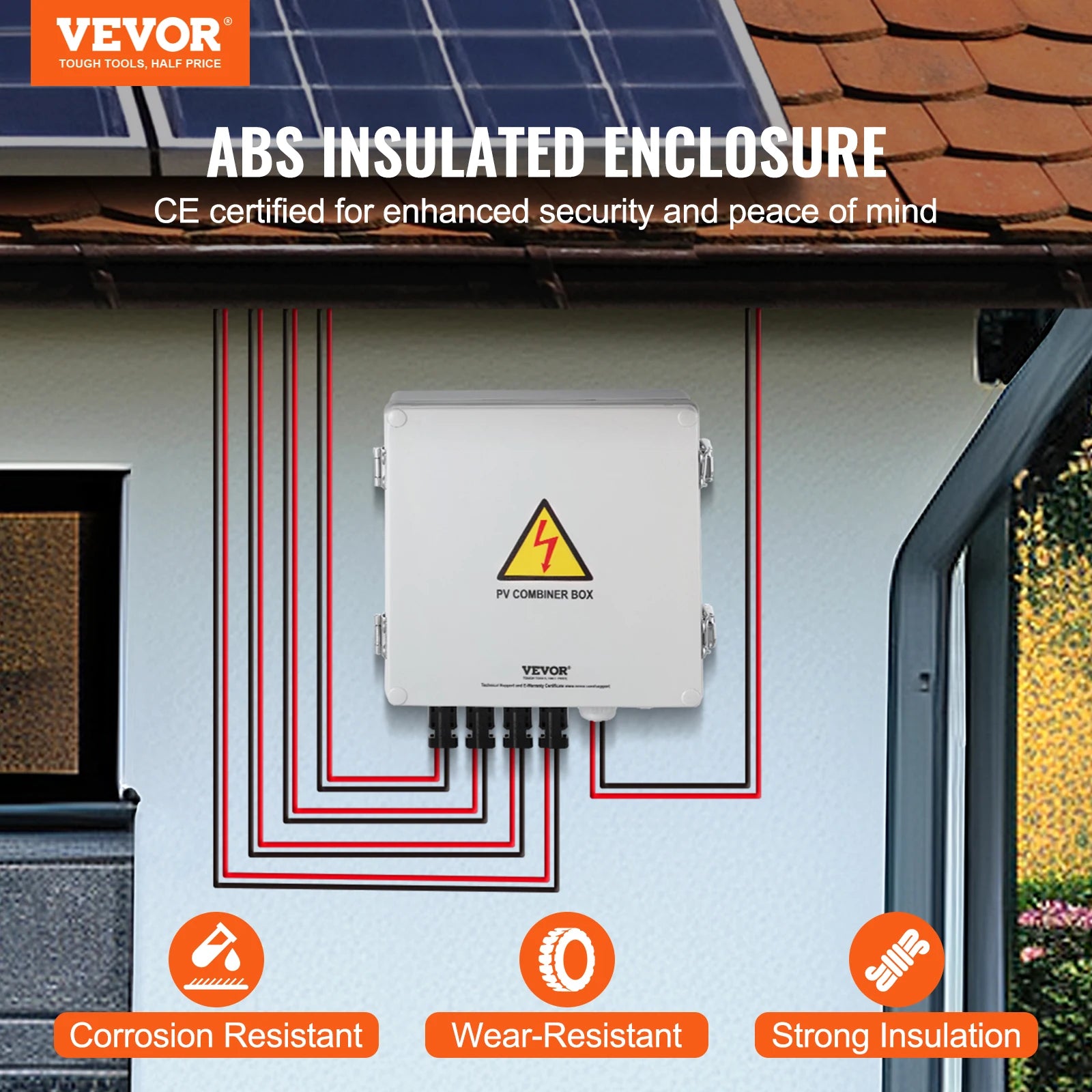

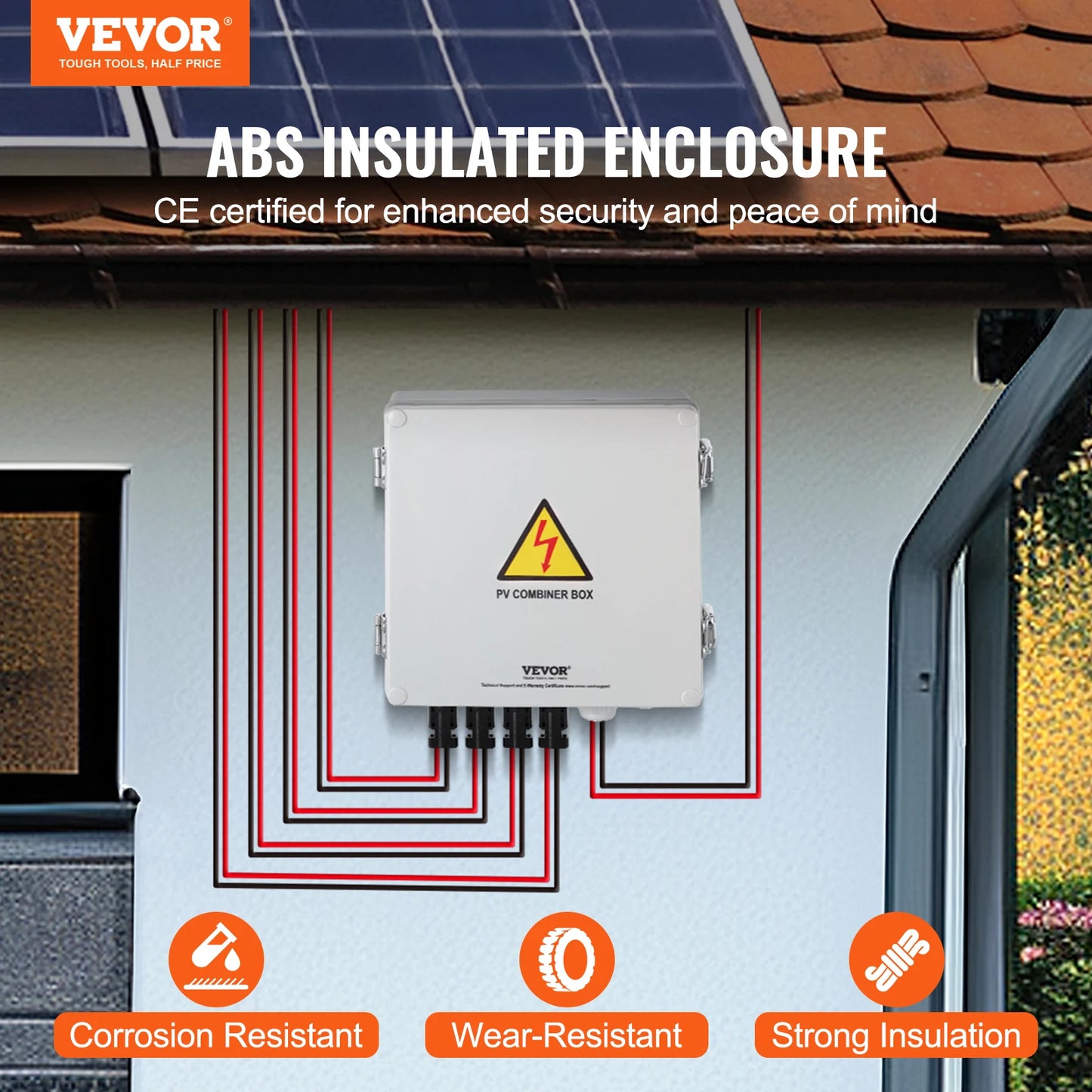

Long-lasting Durability: Constructed with high-quality ABS insulation, this combiner box ensures superior moisture resistance and long-term reliability. Its impact-resistant design provides added protection, keeping your system secure in tough conditions. Advanced Insulation and Safety: Tested to meet CE standards, this box provides reliable insulation and drip-free performance. It is engineered to withstand extreme environments, keeping your equipment safe and your solar setup functioning optimally. Effortless System Maintenance: Equipped with 4 x 10A DC fuses and a 63A circuit breaker, this combiner box simplifies maintenance tasks. Easily disconnect circuits to avoid widespread power outages during PV system issues, optimizing performance and uptime. Protection from the Elements: With an IP65 rating, this combiner box offers exceptional dust and waterproof capabilities, making it ideal for outdoor use. It ensures durability and eliminates the need for frequent replacements, even in harsh weather conditions. Elevated Solar Performance: Designed to boost your PV system’s output, this professional combiner box supports efficient power distribution. By ensuring smooth operation and easy circuit management, it enhances your solar energy production and system longevity.
Durable and Long-Lasting
Constructed from high-quality materials, this combiner box is built to withstand harsh outdoor conditions, offering excellent durability and longevity for reliable use in diverse environments.
Versatile Application
Ideal for a wide range of settings, this PV combiner box is perfect for public facilities, residential homes, engineering projects, industrial applications, and even recreational vehicles, making it a versatile choice for various solar setups.

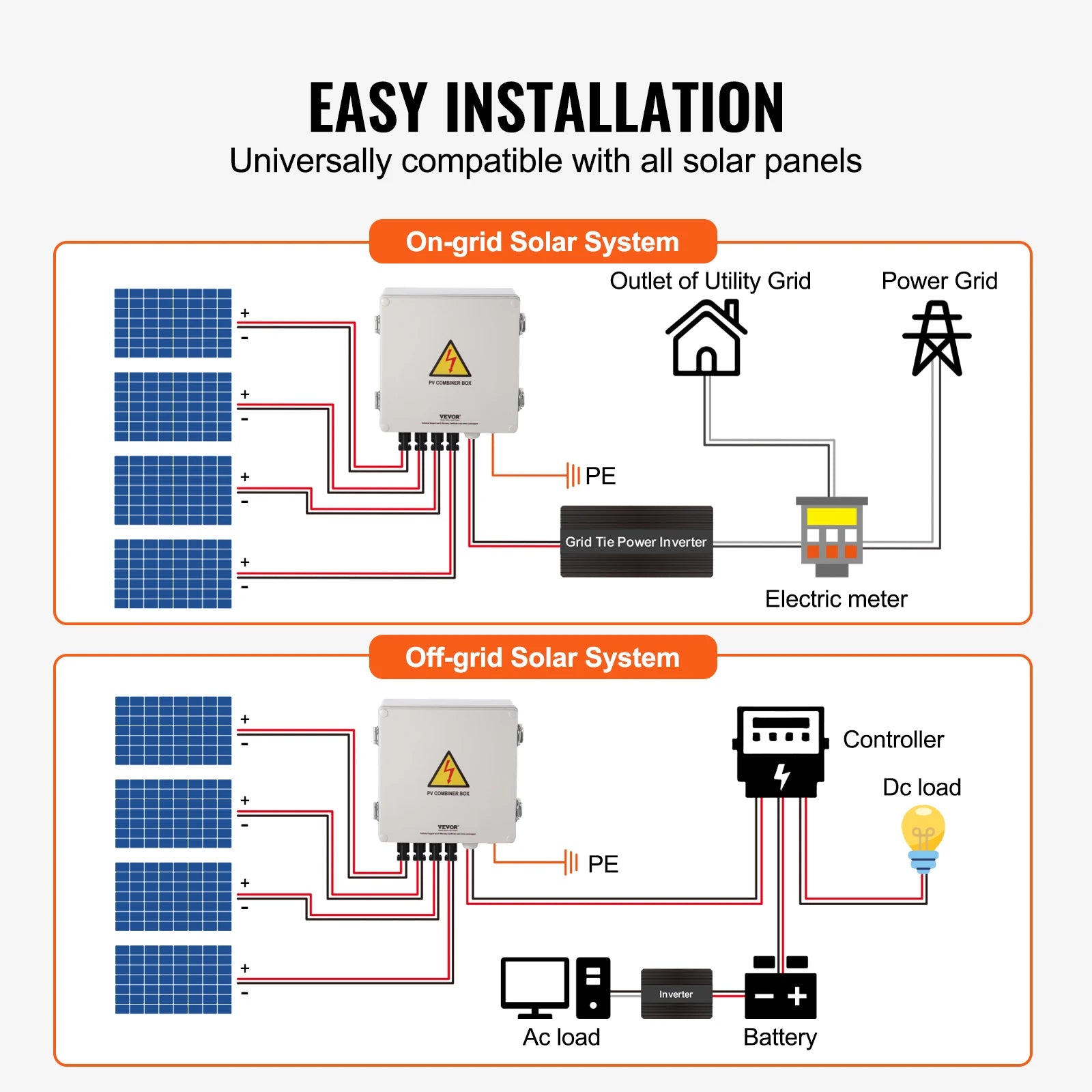

Simple and Fast Installation
Equipped with all necessary accessories for installation, this combiner box simplifies the setup process. It integrates seamlessly into your solar panel system, ensuring a smooth and hassle-free installation experience, wherever you need it..

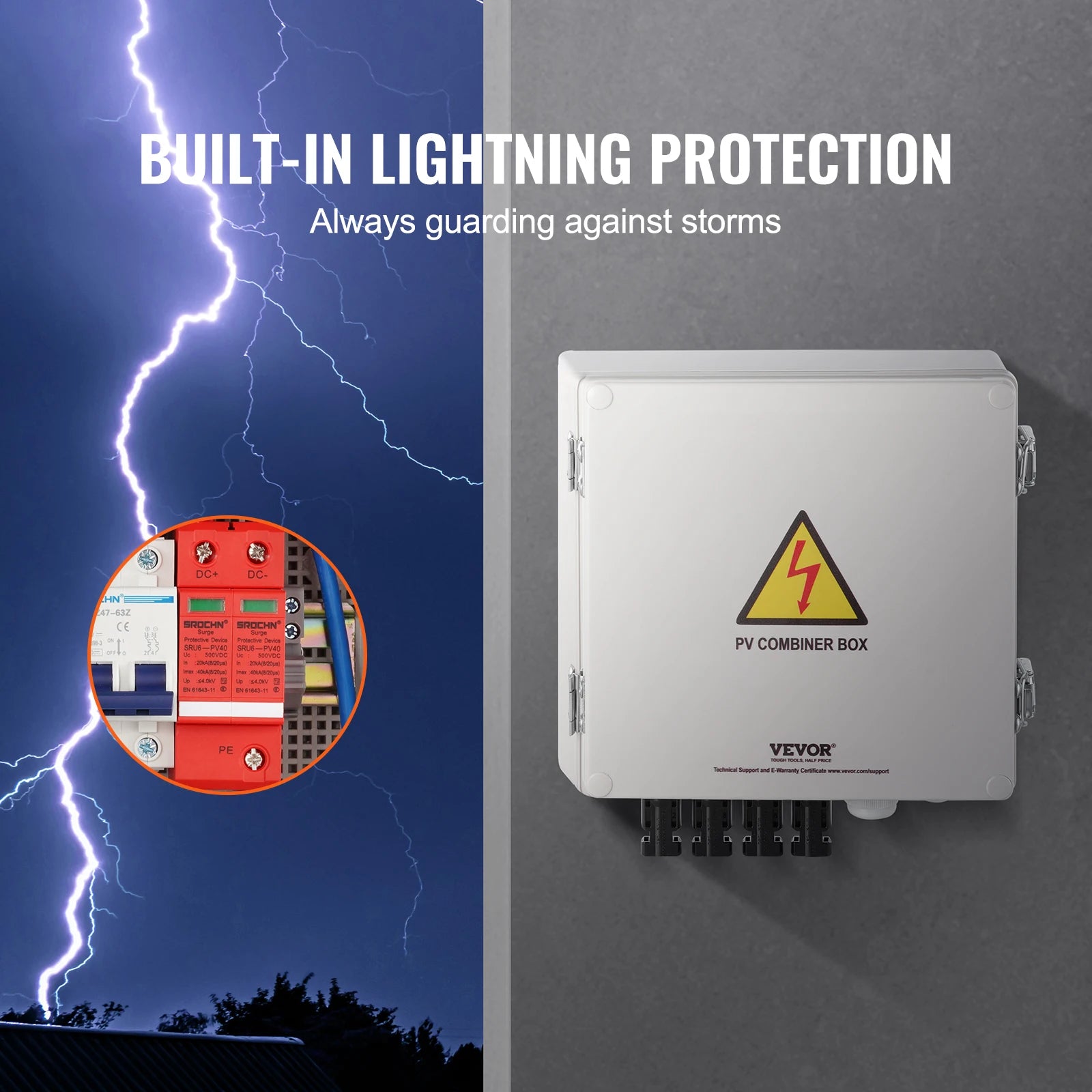

Comprehensive Safety Protections
Built with multiple protection mechanisms, including short-circuit, lightning, overvoltage, overcurrent, and ground protection, this combiner box safeguards your solar system, providing enhanced reliability and preventing potential damage.

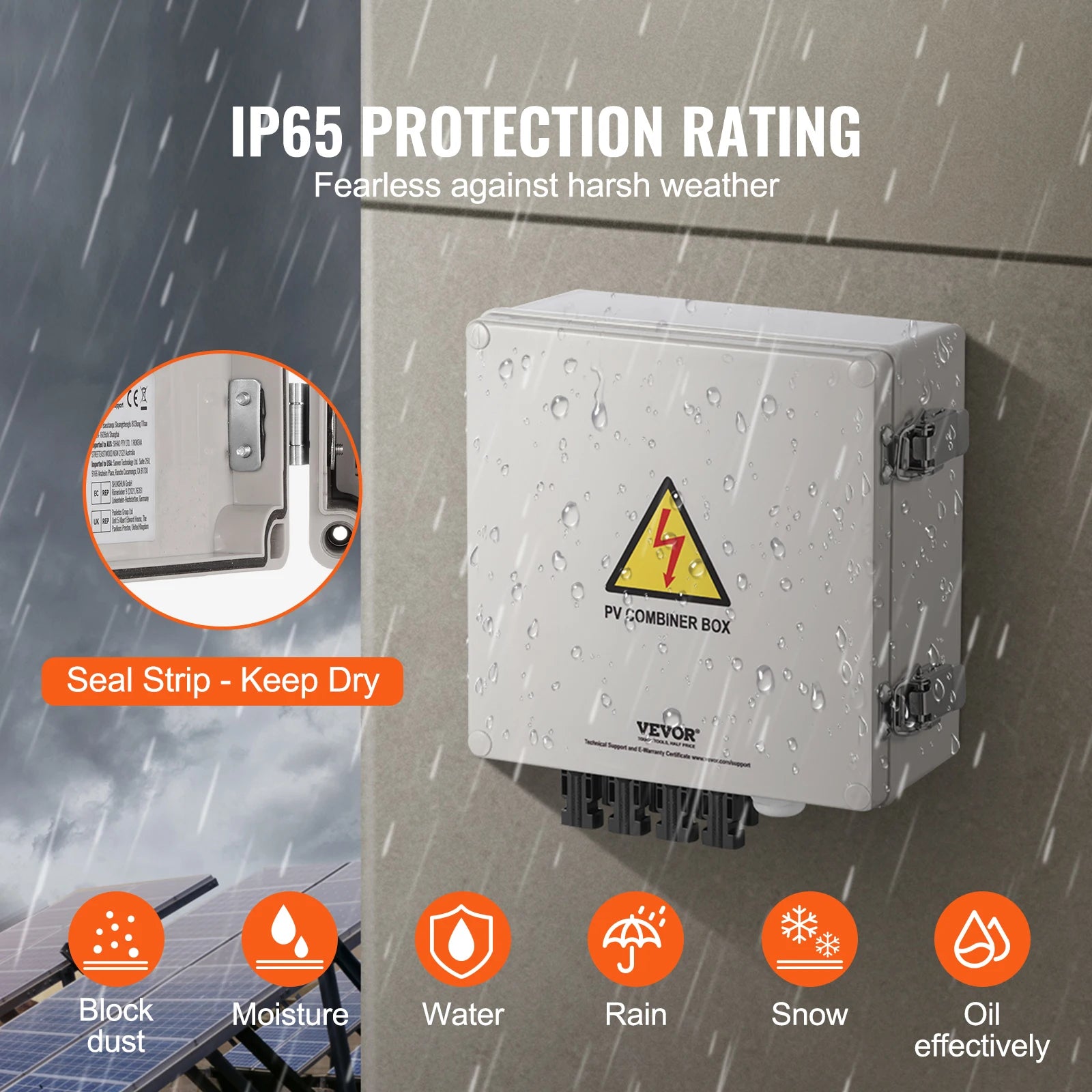

Convenient, Tool-free Access
The box features a latch system, allowing you to easily open and close it without needing keys. This user-friendly design eliminates the hassle of finding keys, ensuring fast and efficient access for maintenance or adjustments.

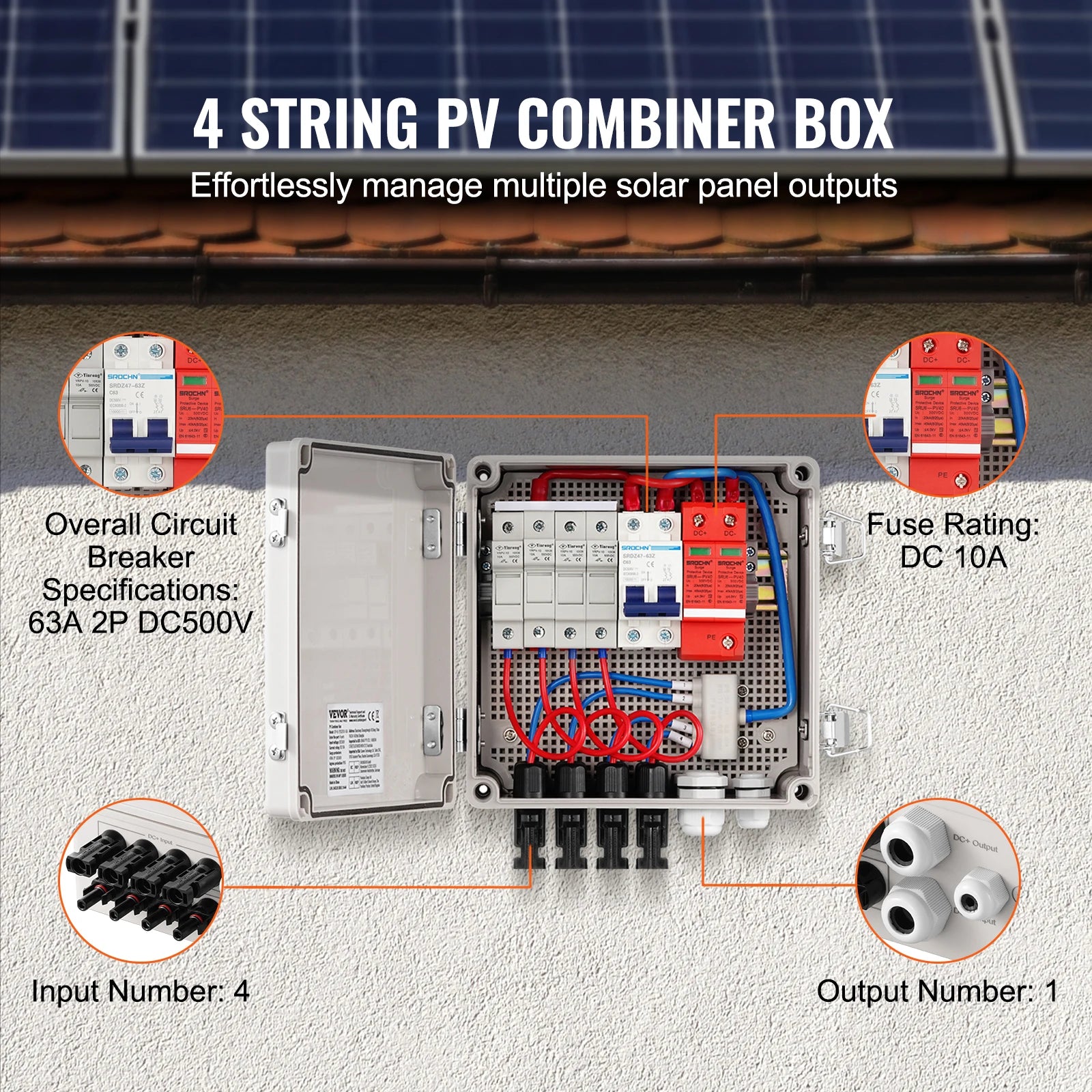

Optimized Connection System
Designed with four 10A DC fuses, a 500V 63A circuit breaker, and integrated lightning protection, this PV combiner box ensures smooth and secure connections between your solar array and inverters, optimizing your system’s overall performance.

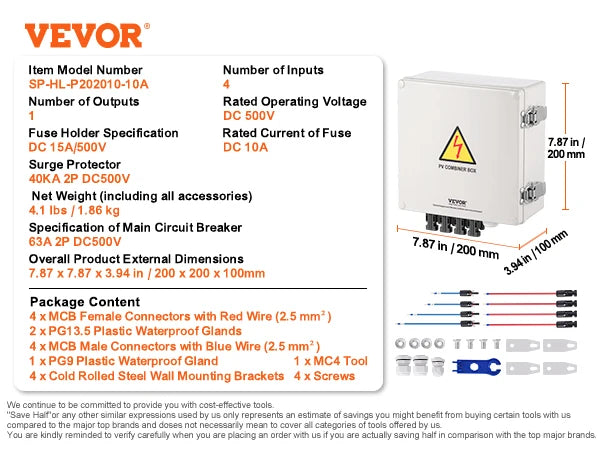

Specification
Net Weight (including all accessories): 1.86 kg / 4.1 lbs Surge Protector: 40KA 2P DC500V Rated Operating Voltage: DC 500V Main Material: ABS Plastic Material + RAL7035 Grey-White Finish Fuse Holder Specification: DC 15A/500V Protection Rating: IP65 Number of Outputs: 1 Door Opening Method: Latch Opening Specification of Main Circuit Breaker: 63A 2P DC500V Mounting Plate: Detachable Mounting Plate (Material: ABS Mesh Plastic Base) Overall Product External Dimensions (L x W x H): 200 x 200 x 100 mm / 7.87 x 7.87 x 3.94 in Sealing Strip: PU Polyurethane Foam Material (Black) Item Model Number: SP-HL-P202010-10A Number of Inputs: 4 Rated Current of Fuse: DC 10A/li>

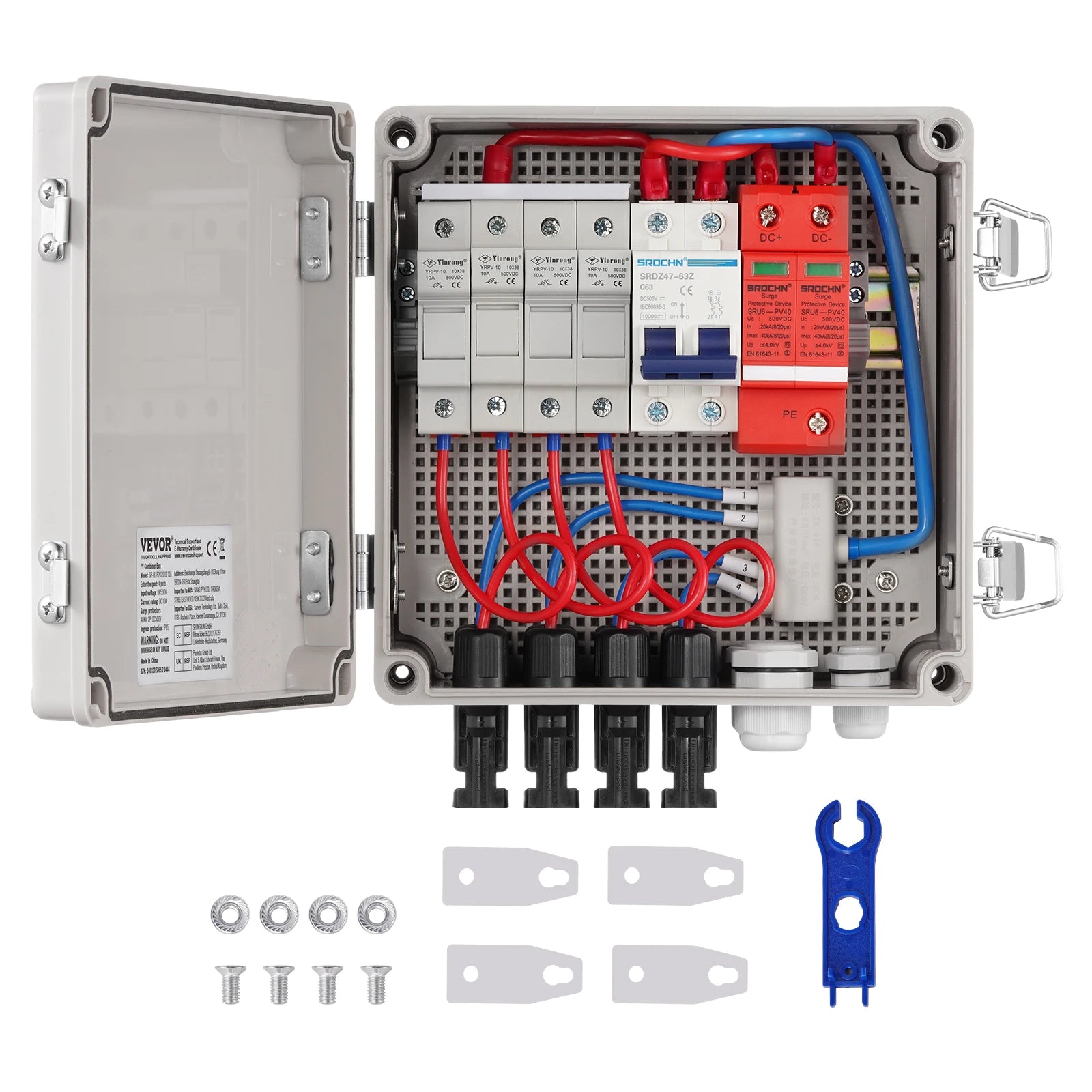

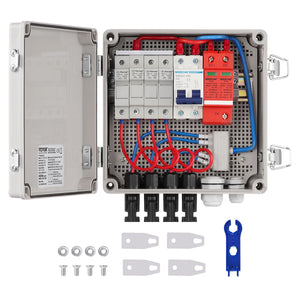

Package Content
1 x PG9 Plastic Waterproof Gland 1 x MC4 Tool 4 x Cold Rolled Steel Wall Mounting Brackets 4 x Screws 4 x MCB Female Connectors with Red Wire (2.5 mm²) 4 x MCB Male Connectors with Blue Wire (2.5 mm²) 2 x PG13.5 Plastic Waterproof Glands
| Color |
4 String 10A Plastic, 6 String 10A Steel, 4 String 15A Steel, 6 String 15A Steel |
|---|---|
| Ships From |
Australia, Poland, france, United States, spain, GERMANY, canada, CZECH REPUBLIC |
