Description: 192KHz/24Bit DAC Digital to Analog Audio Converter Digital. SPDIF Optical Toslink Coaxial to Analog Stereo L/R RCA and 3.5mm Jack
Bluetooth: No
DSD Sampling Frequencies: 2.8224 MHz (DSD64),5.6448 MHz (DSD128),11.2896 MHz (DSD256),22.5792 MHz (DSD512)
Input Format: MP3,M4A
Inputs: Optical (SPDIF),Coaxial,HDMI
Material: Metal
Model Number: 01
Outputs: RCA,3.5 mm
PCM Sampling Frequencies: 44.1 kHz,48 kHz,88.2 kHz,96 kHz,176.4 kHz,192 kHz
PCM Word Length: 24-bit
Type: Portable
USB Compatibility: None
WIFI: No

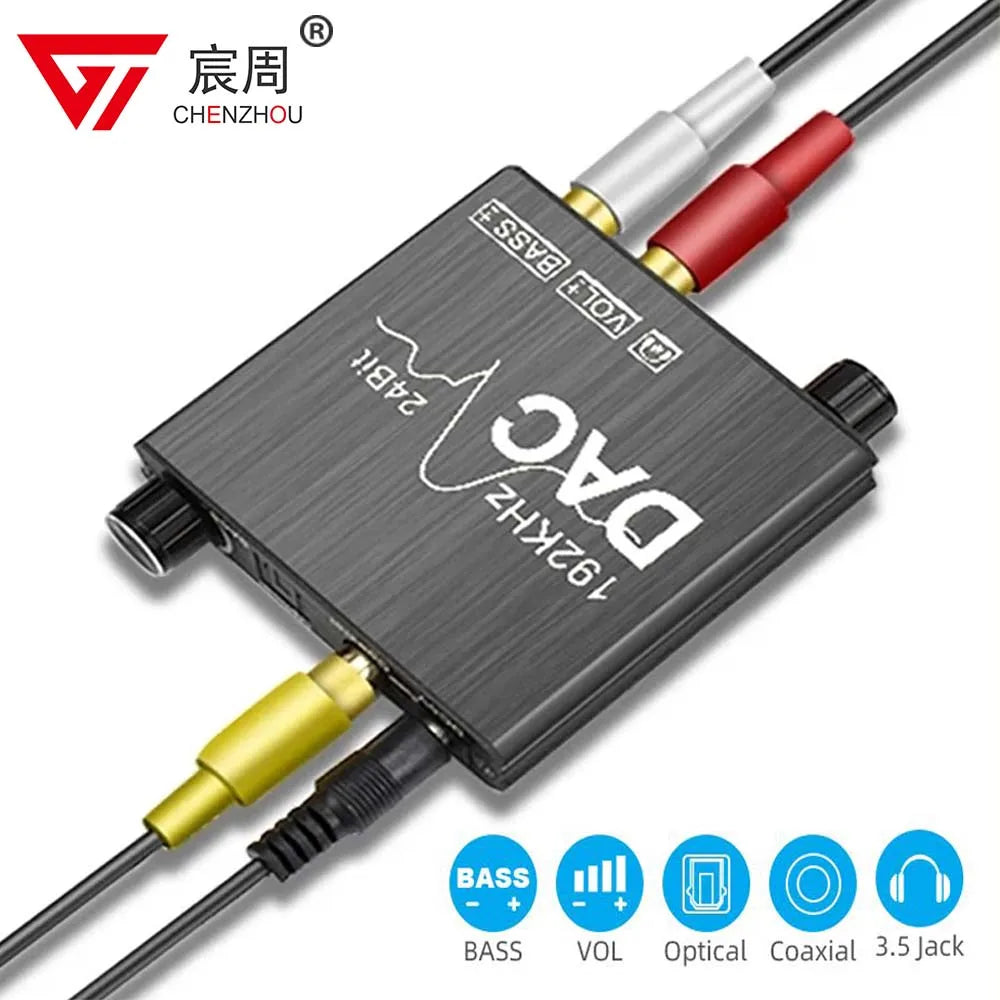

192KHz/24Bit DAC Digital to Analog Audio Converter Digital SPDIF Optical Toslink Coaxial to Analog Stereo L/R RCA and 3.5mm Jack Converter with Bass and Volume Adjustment for PS3 PS4 DVD Apple TV Home Cinema
Note！
1.Before power on, you must turn the adjustment knob counterclockwise to minimize the volume to avoid damage to your hearing!

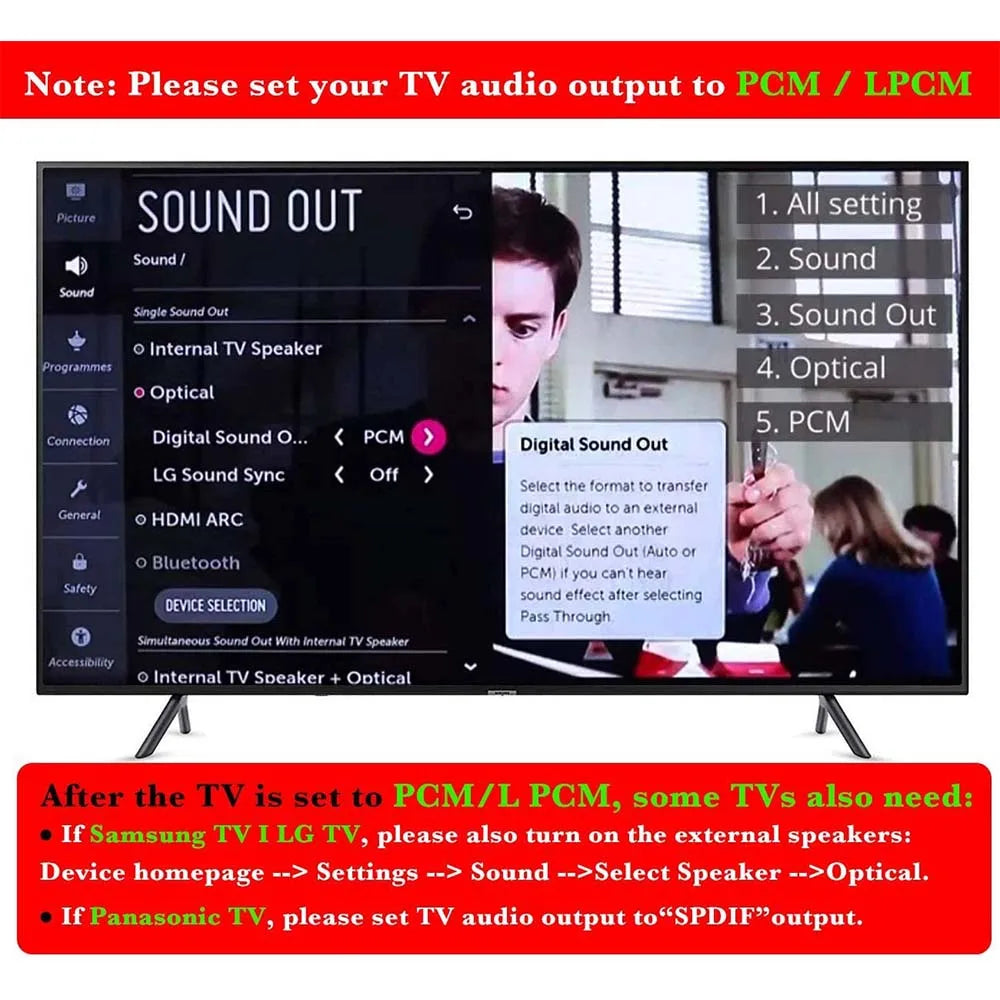

2.Before use, please set the audio output channel of your signal source devices such as DVD, TV, PS4 and other devices to SPDIF, and set the output audio format to PCM.
Introduction
This product is designed for professional audio signals,Can easily convert Coaxial or Toslink interface to RCA analog audio interface and 3.5mm headphone jack. The professional audio amplifier chip and volume adjustment knob are designed to directly drive the headphones and adjust the output volume. The product also designed a bass adjustment knob, which can easily control the bass component to meet different customer needs.
Bullet Points:
1、192Khz 24Bit Sampling Rate: Supports 192Khz 24-bit sampling rate on optical and SPDIF signals, with built-in interference immunity and no signal input squelch circuit.
2、Widely Compatible with 32~600Ω Headphones: Designed for gamers and music lovers, it supports all headphones within 32~600Ω.
3、Volume Adjustment Knob: Built-in volume adjustment circuit and control knob, completely solve the problem of low volume when using high impedance headphones used in DAC products, with surge power and full thrust.
4、Bass Adjustment Knob: 192KHz DAC innovatively designed bass adjustment function, which can provide stunning stereo, heavy bass effects, create a perfect environment different from the sound field, and the effect is very obvious, allowing you to show off in the world through bass.
5、Specifcial Design: The design of the portable stylish aluminum alloy shell and gold-plated interface improves the overall immunity and makes the sound clear and pure. Wide compatibility, can be used for PS3, for PS4, Blu-ray player, HD DVD, home theater system, etc. Easy to install, plug and play.
Specification:
Support audio format: PCM
Resolution (1KHZ): 94DB
Response frequency: 20Hz~20KHz -0.2db
Signal to Noise Ratio (SNR):-100DB
Total harmonic distortion (THD + N): 10Hz~20KHz 0.25-0.065%
Block time: 0.577Fs
Sampling rate: 32~192 KHz
Bit rate: 16 to 24 bits
Output electrical level: 7V
Headphone output power: (RL = 32Ω)
Output impedance: 47 ohm
Working voltage: + 5V
maximum voltage: 6V
Maximum power consumption: 100mAh
Operating temperature range:-10-70℃
Storage temperature range:-60-150℃

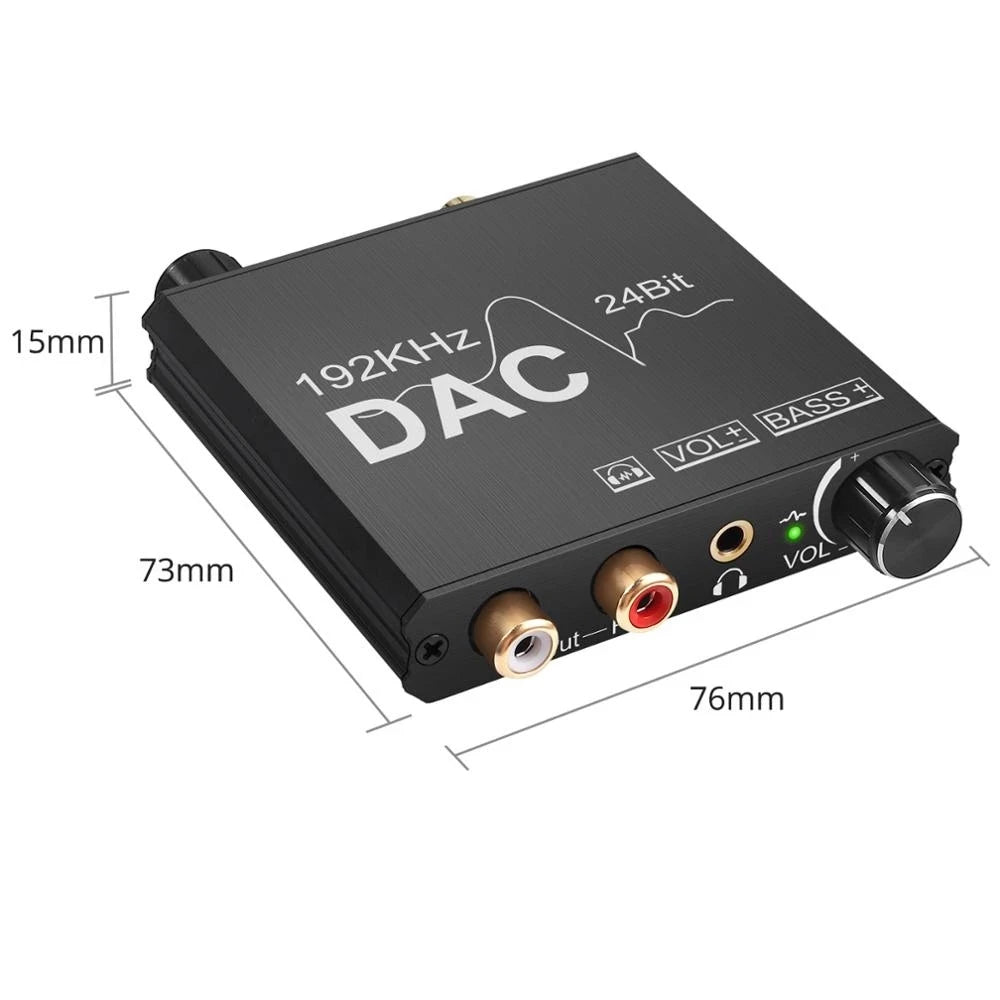

Size: about 76mmx70mmx16mm/2.99x2.76x0.63 inch

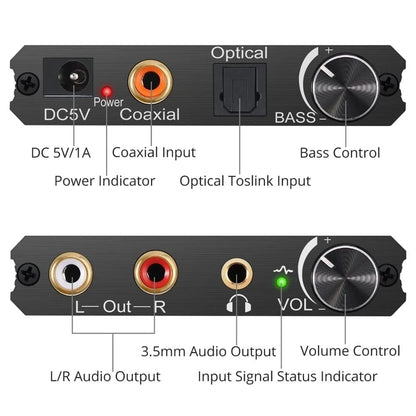

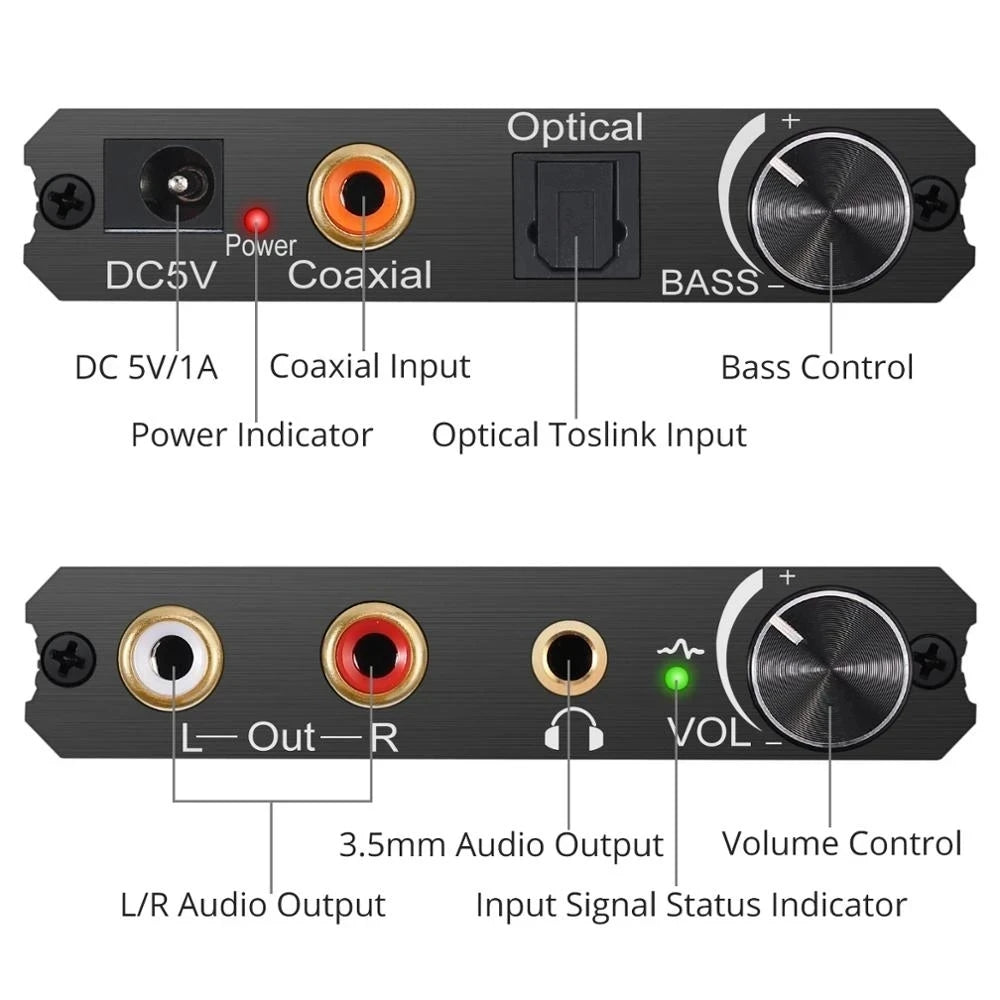

Interface Diagram
1.Power Interface.
2.Power Indicator Light.
3.Digital Audio Input Interface.(Connect to CD/DVD and other devices.)
4.Digital Audio Input Interface.(Connect to CD/DVD/HD Player Box/Smart TV and other devices)

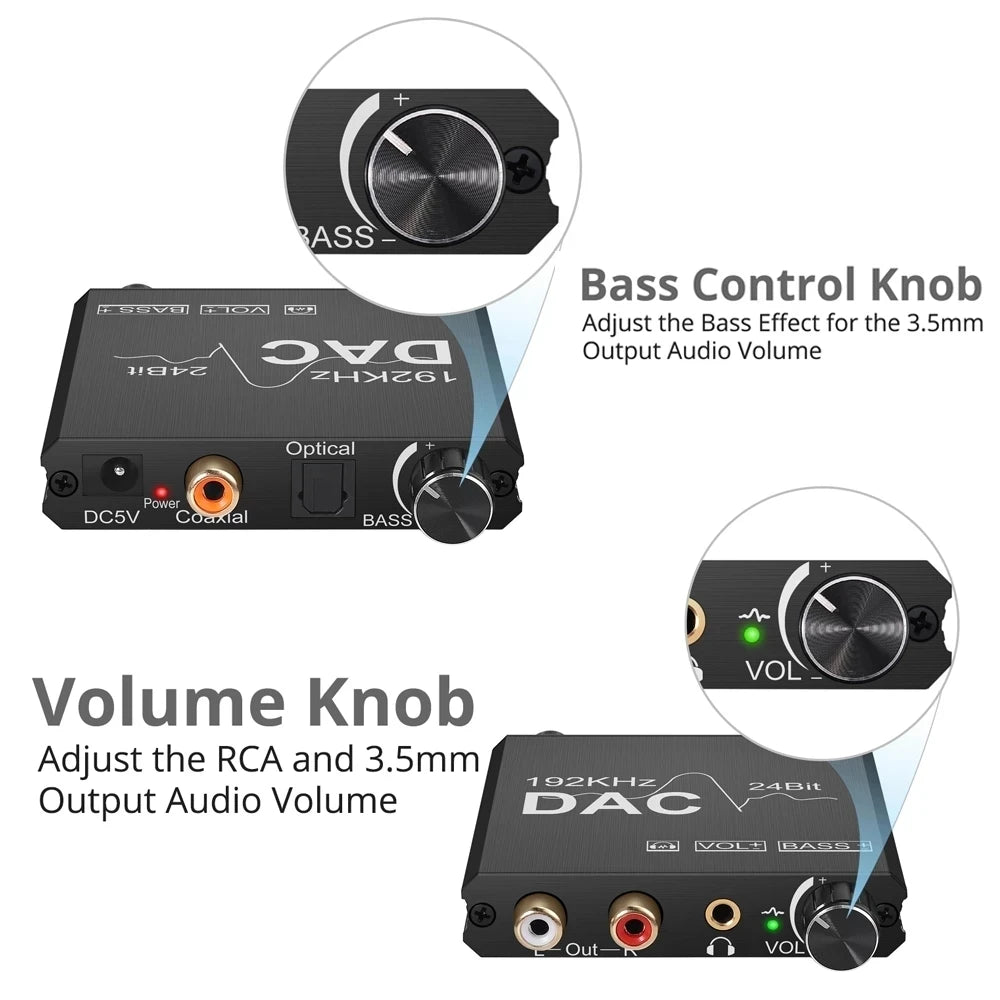

5.Use this knob to adjust the output bass component
6.RCA Interface:Analog Audio Output Interface,Connect to the audio amplifier
7.3.5mm audio output interface, connect to earphone
8.Input signal status indicator, on when the correct audio signal is input
9.Adjust the output volume by this knob.

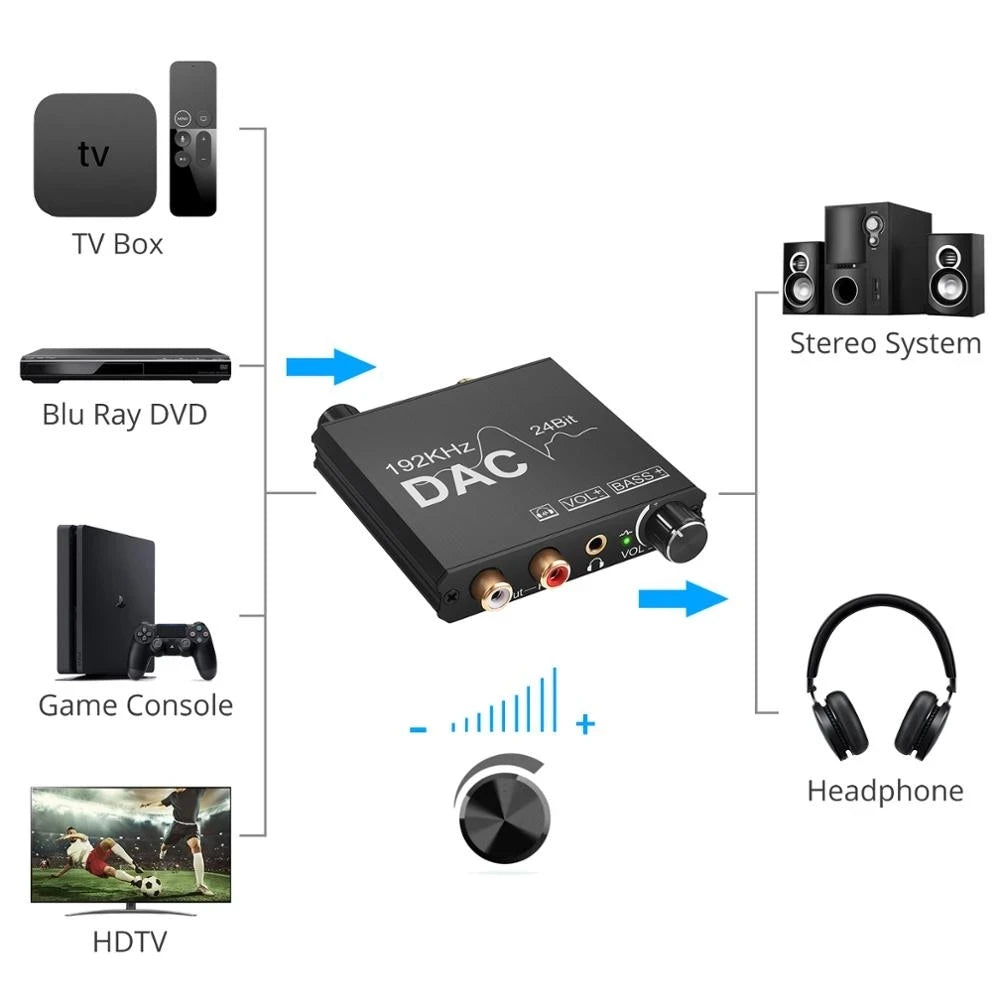

Connection method

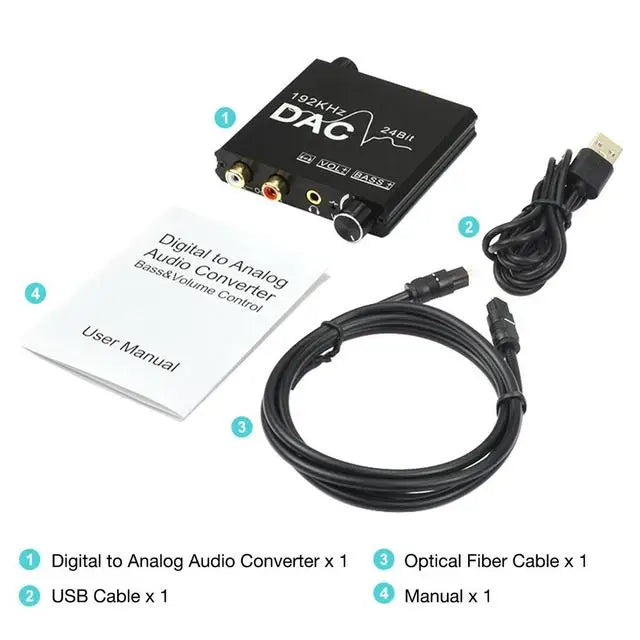

Packing List:
1 x DAC Converter
1 x User Manual
1 x 1m Optical Cable
1 x USB Power Cable
